CL244 Carbon Steel Hinge – 120° Opening with Reliable Load Capacity
The CL244 hinge is a robust solution designed for industrial and heavy-duty applications. Made from high-strength carbon steel with a locking pin, it offers a 120° opening angle for versatile use. The hinge features a durable combination of galvanized and black-painted finishes, ensuring superior corrosion resistance and longevity. With a radial load capacity of 270N and an axial load capacity of 305N, the CL244 provides dependable performance for doors, enclosures, and control panels.
Material and Surface Finish
- Material: Carbon steel body, carbon steel locking pin.
- Surface Finish: Galvanized and black-painted finishes for enhanced durability and resistance to corrosion.
Products Categories
Get A Free Quote
Key Features
- 120° Opening Angle: Allows for smooth and precise door movement.
- Reliable Load Capacity: Radial load up to 270N and axial load up to 305N.
- Durable Construction: High-strength materials ensure longevity in industrial applications.
- Corrosion Resistance: Dual finish protects against wear and harsh environments.

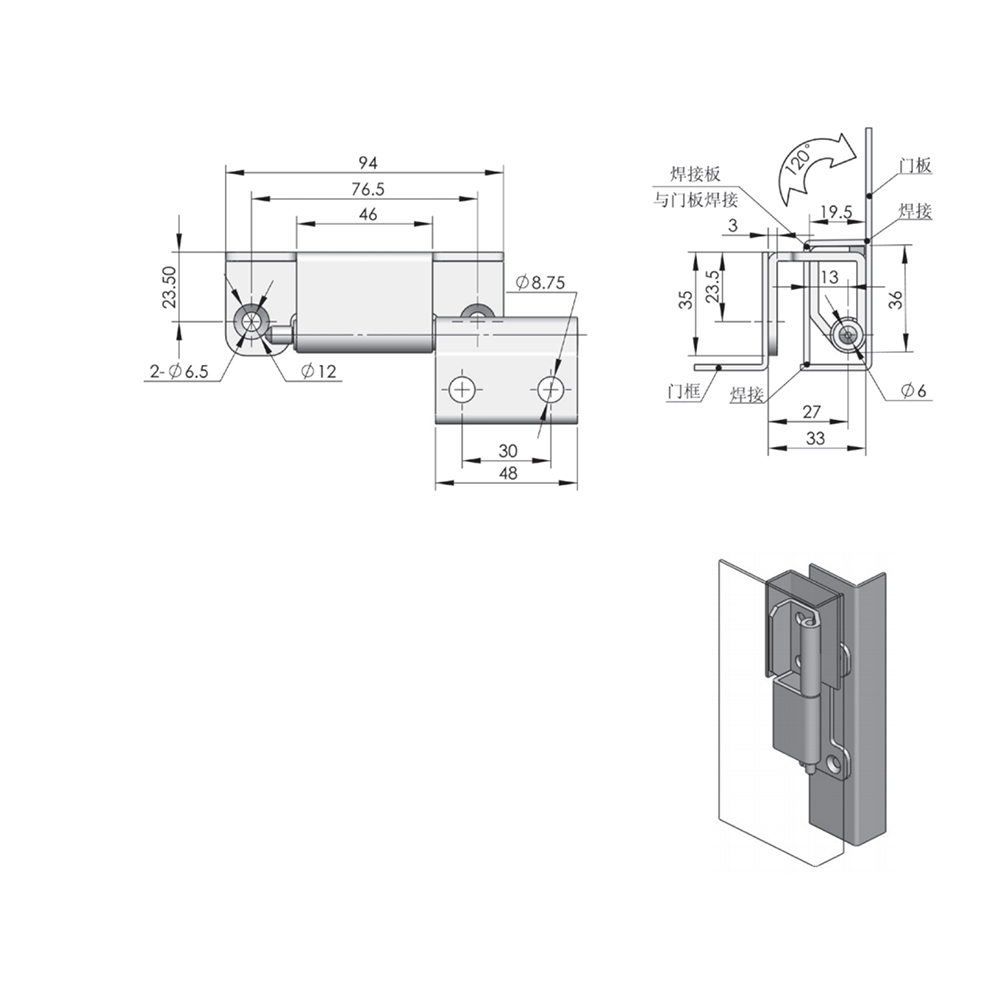

Specifications
- Mounting Hole Dimensions: Ø6.5 mm and Ø12 mm
- Hinge Length: 94 mm
- Hinge Width: 33 mm
- Opening Angle: 120°
- Axial Load Capacity: 305N
- Radial Load Capacity: 270N
Applications
- Industrial enclosures
- Cabinet doors
- Heavy-duty control panels
Keywords
CL244 hinge, carbon steel hinge, 120-degree hinge, industrial hinge, galvanized hinge, black-painted hinge
