CL236 Zinc Alloy Hinge – 90° Opening with Superior Load Capacity
The CL236 hinge is designed for strength and reliability in industrial and cabinet applications, featuring a 90° opening angle. Manufactured from robust zinc alloy with a carbon steel pin, this hinge is finished with a durable black coating for corrosion resistance. With a radial load capacity of 1250N and an axial load capacity of 600N, the CL236 hinge delivers excellent performance in heavy-duty applications. Its precision engineering ensures smooth operation and long-lasting durability.
Material and Surface Finish
- Material: Zinc alloy hinge body, carbon steel pin.
- Surface Finish: Available in black spray coating and nanometer matte finishes for added protection and aesthetic appeal.
Products Categories
Get A Free Quote
Key Features
- 90° Opening Angle: Facilitates controlled and precise door movement.
- High Load Capacity: Radial load of 1250N and axial load of 600N.
- Robust Construction: Ensures reliability and durability in demanding environments.
- Versatile Finishes: Black spray and matte finishes cater to different functional and visual requirements.

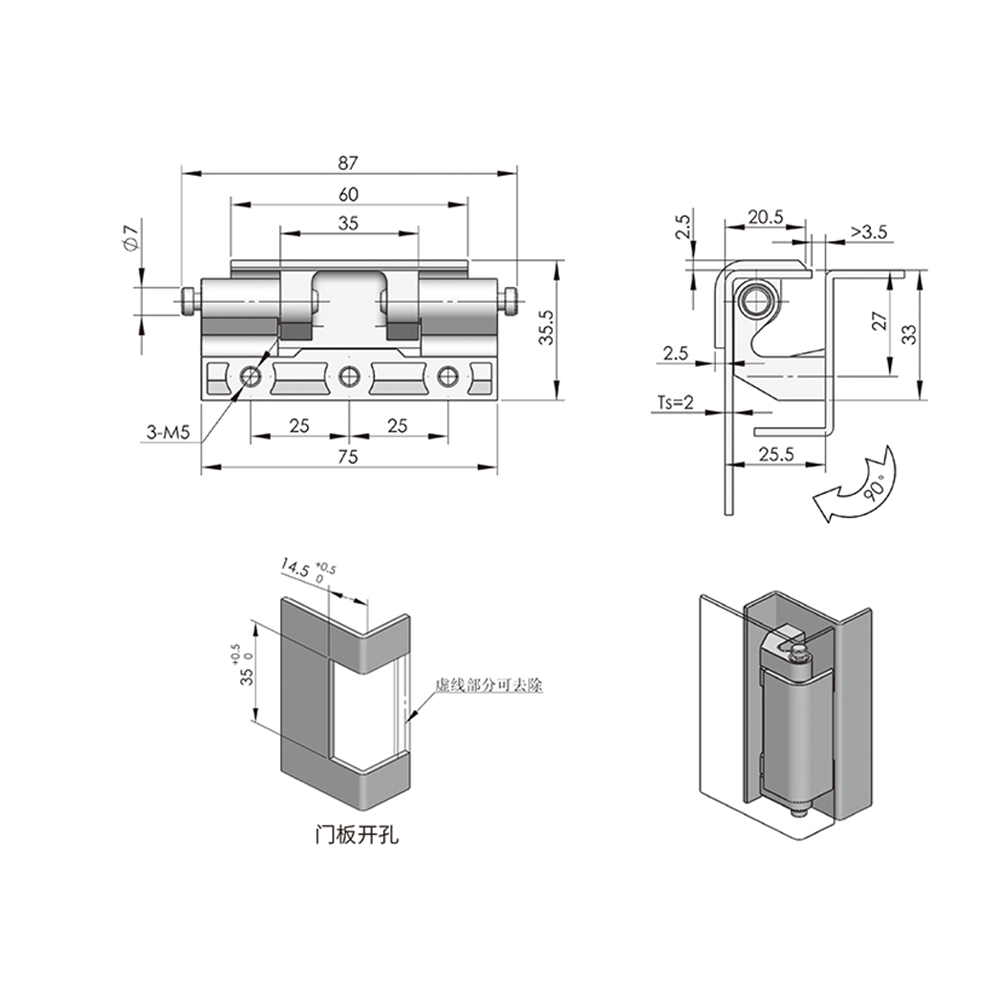

Specifications
- Mounting Hole Dimensions: 3-M5 threaded holes
- Hinge Length: 87 mm
- Hinge Width: 35.5 mm
- Opening Angle: 90°
- Axial Load Capacity: 600N
- Radial Load Capacity: 1250N
Applications
- Heavy-duty industrial equipment
- Machinery enclosures and panels
- Electrical and control cabinets
Keywords
CL236 hinge, zinc alloy hinge, 90-degree hinge, heavy-duty hinge, black matte hinge, industrial hinge
