CL229-2A/CL229-2B Stainless Steel Hinges – 90° Opening with High Load Capacity
The CL229-2A and CL229-2B hinges are designed for applications requiring a 90° opening angle and exceptional durability. Made from high-quality stainless steel with an electro-polished finish, these hinges offer corrosion resistance and a professional appearance. With a maximum radial load of 425N and axial load of 225N, they are ideal for industrial equipment and heavy-duty enclosures. The CL229 series supports both left and right-opening door configurations, providing flexibility for diverse use cases.
Material and Surface Finish
- Material: Stainless steel for enhanced strength and corrosion resistance.
- Surface Finish: Electro-polished finish for a sleek and durable surface.
Products Categories
Get A Free Quote
Key Features
- 90° Opening Angle: Supports smooth and precise door opening and closing.
- High Load Capacity: Radial load up to 425N and axial load up to 225N.
- Left and Right Configurations: CL229-2A for left-opening doors and CL229-2B for right-opening doors.
- Durable Build: Stainless steel construction ensures longevity even in challenging environments.

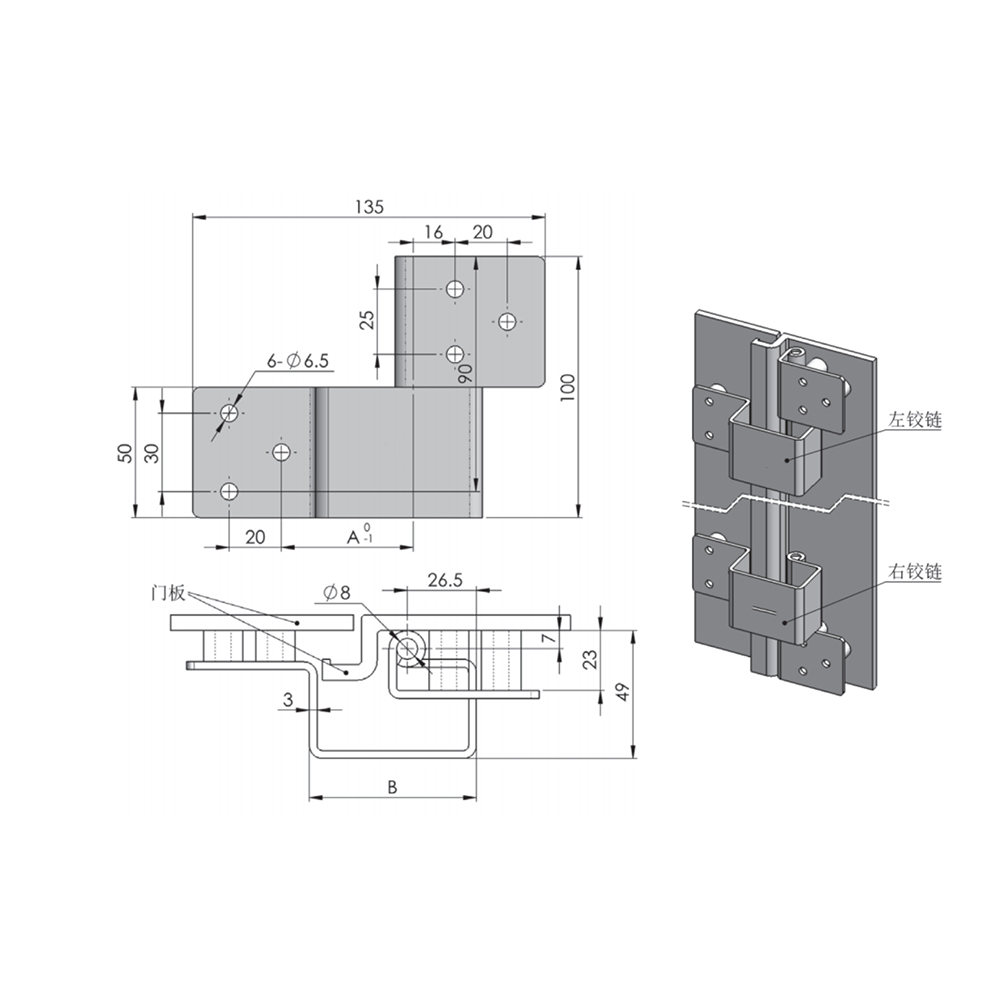

Specifications
- Mounting Hole Diameters: Ø6.5 mm
- Width: 50 mm
- Height: 100 mm
- Opening Angle: 90°
- Axial Load Capacity: 225N
- Radial Load Capacity: 425N
Applications
- Industrial equipment enclosures
- Heavy-duty cabinet doors
- Control panel housings
Keywords
CL229-2A hinge, CL229-2B hinge, stainless steel hinge, 90-degree hinge, industrial hinge, heavy-duty hinge, left/right-opening hinge
