CL225-5 Corner & Removable Hinge, Spring-loaded Insert Pin
The CL225-5 corner hinge is designed for quick and secure attachment in corner applications. Its spring-loaded mechanism allows for easy removal, making it ideal for panels or doors that require frequent access. The hinge features a robust polyamide base and a durable zinc-plated steel insert pin, ensuring reliability and longevity in demanding environments.
Material:
- Base: Polyamide (PA), black
- Insert Pin: Zinc Alloy, Zinc-plated
- Spring: Stainless Steel (SS-304)
Surface Finish:
Zinc-plated finish on insert pin for enhanced corrosion resistance and durability.
Color/Appearance:
Black polyamide with zinc-plated steel components
Key Features
- Easy Removal: Spring-loaded design allows for quick and easy removal, making it ideal for doors or panels requiring regular access.
- Durable Construction: Made with high-quality polyamide base and stainless steel components to withstand tough conditions.
- Corrosion-resistant: Zinc-plated insert pin provides extra protection against rust and wear.

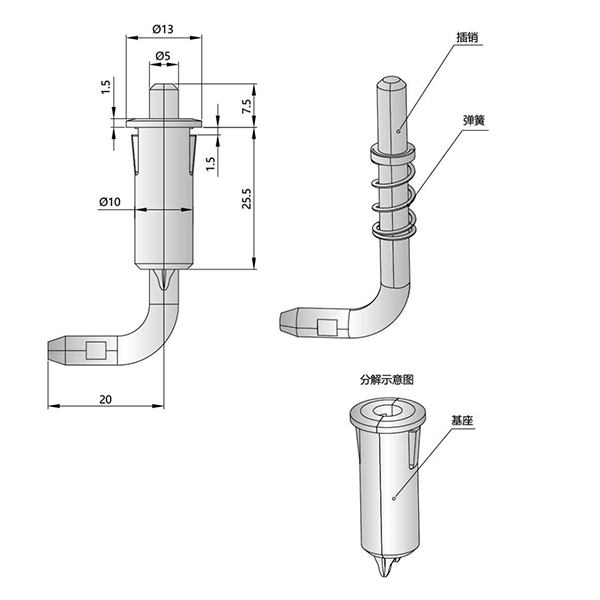

Specifications
- Total Length: 57 mm
- Pin Diameter: 5 mm
- Head Diameter: 13 mm
- Compression Range: 8 mm retractable
Applications
Suitable for use in cabinets, enclosures, and other equipment that requires secure attachment with easy access. Ideal for industrial equipment, telecommunications, and server cabinets.
