CL220 Zinc Alloy Torque Positioning Hinge – High Load Capacity and Durability
The CL220 zinc alloy torque positioning hinge is engineered for industrial equipment and control cabinets requiring reliable rotational positioning. Its surface is treated with a matte chrome finish for enhanced corrosion resistance and wear protection. Featuring a robust zinc alloy body and carbon steel pin, the hinge offers excellent structural strength and durability. With a maximum static load capacity of 290N (radial) and 160N (axial), this hinge is designed to meet diverse industrial application demands.
Material and Surface Finish
- Material: Zinc alloy hinge body, carbon steel pin.
- Surface Finish: Matte chrome plating for corrosion resistance and a sleek appearance.
Products Categories
Get A Free Quote
Key Features
- High Load Capacity: Radial load up to 290N, axial load up to 160N, ideal for heavy-duty applications.
- Torque Positioning Functionality: Ensures precise rotational control and stability.
- Versatile Design: Suitable for electrical cabinet doors, industrial equipment, or other high-performance hinge applications.

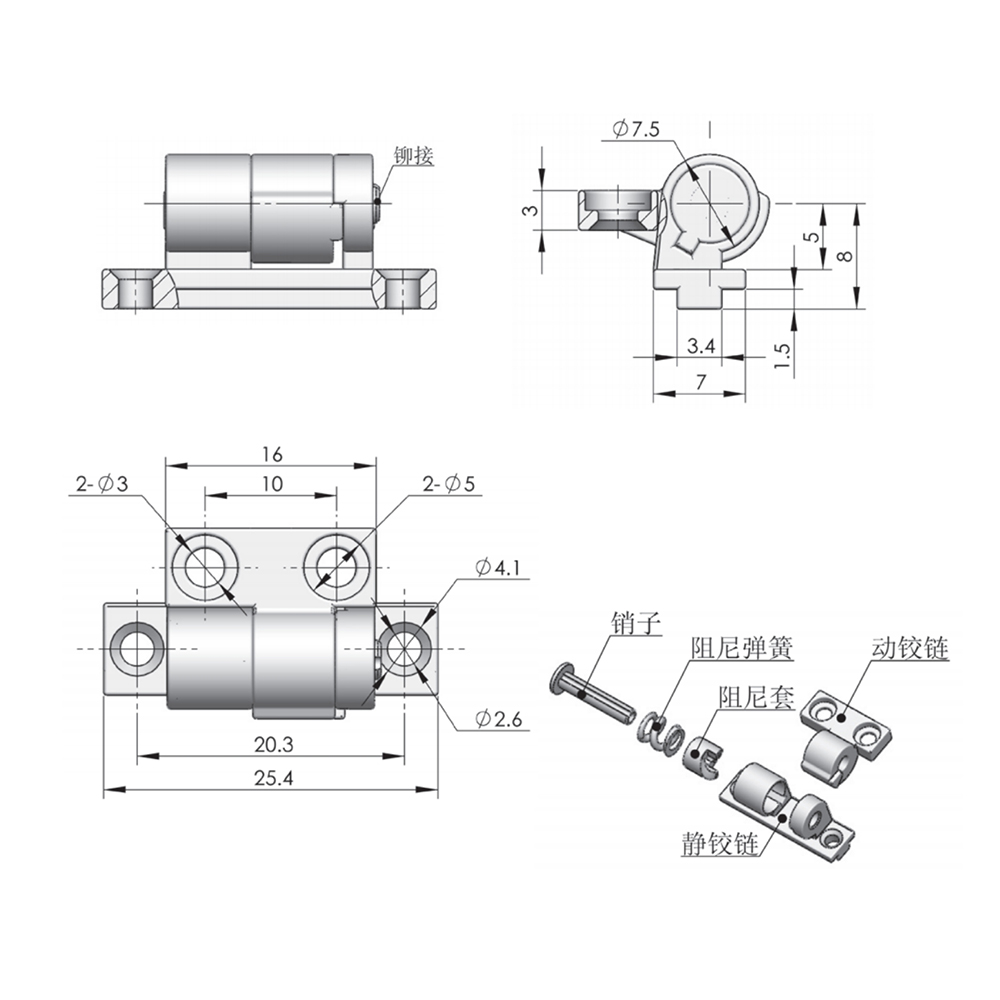

Technical Specifications
- Mounting Hole Diameters: Ø5 mm and Ø3 mm
- Total Width: 25.4 mm
- Rotation Radius: 8 mm
- Model ERP Number: CL220Z3B001
Applications
- Rotational components in industrial equipment
- Electrical control cabinet doors
- Precision instrument enclosures
Keywords
CL220 hinge, high-load hinge, industrial hinge, torque positioning hinge, electrical cabinet hinge
