CL220-8 Zinc Alloy Torque Hinge – High Salt Spray Resistance and Enhanced Load Capacity
The CL220-8 torque hinge is designed for high-performance applications requiring exceptional durability and corrosion resistance. Constructed with a zinc alloy body and a stainless-steel shaft, the hinge features a black high-salt-spray-resistant coating for enhanced protection in challenging environments. With a maximum axial load of 600N and radial load of 500N, the CL220-8 is ideal for industrial machinery, outdoor enclosures, and precision equipment.
Material and Surface Finish
- Material: Zinc alloy hinge body, stainless-steel shaft.
- Surface Finish: High-salt-spray-resistant black coating and chromate-treated shaft for superior corrosion resistance.
Products Categories
Get A Free Quote
Key Features
- Enhanced Load Capacity: Axial load of up to 600N and radial load of up to 500N for heavy-duty applications.
- Corrosion Resistance: Black high-salt-spray-resistant finish ensures long-term durability in harsh environments.
- Precision Engineering: Provides smooth and stable torque positioning for demanding use cases.

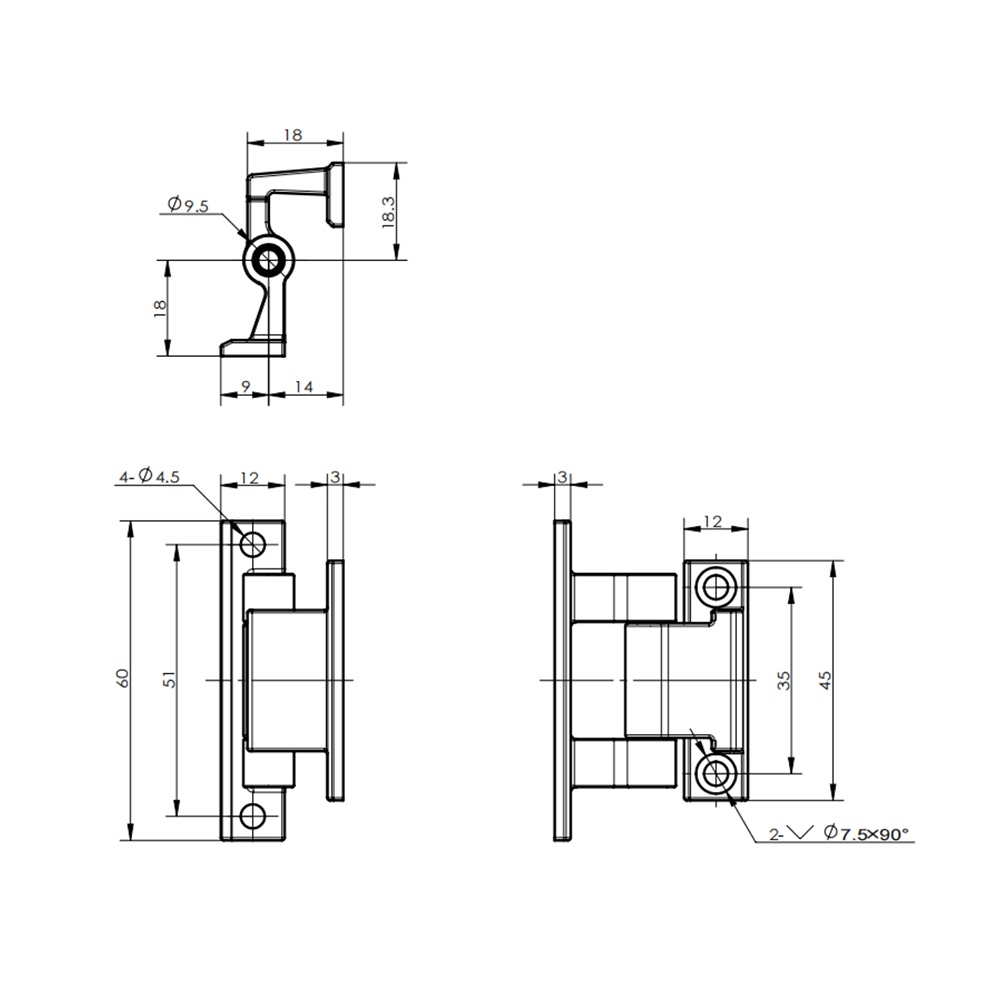

Specifications
- Mounting Hole Diameters: Ø4.5 mm
- Total Height: 60 mm
- Axial Load Capacity: 600N
- Radial Load Capacity: 500N
- Model ERP Number: CL220Z2A002
Applications
- Outdoor industrial enclosures
- High-precision machinery and equipment
- Electrical control panel doors
Keywords
CL220-8 hinge, torque hinge, high-salt-spray hinge, heavy-duty hinge, industrial hinge, outdoor enclosure hinge
