CL216 Zinc Alloy Lift-Off Hinge, 180° Opening
The CL216 Lift-Off Hinge is a reliable and durable hinge solution, specifically designed for industrial and commercial applications requiring easy maintenance access. With a 180° opening angle and a robust zinc alloy body, this hinge delivers exceptional functionality and strength. Carbon steel pins enhance structural stability, and the black gloss finish provides a professional appearance.
Material and Finish
- Material:
- Zinc alloy body for durability.
- Carbon steel pins for reinforced strength.
- Surface Finish: Black light gloss coating.
Products Categories
Get A Free Quote
Key Features
- Lift-Off Design: Enables quick door removal for maintenance or assembly.
- Opening Angle: Full 180° for maximum accessibility.
- Load Capacity:
- Radial load: 570N
- Axial load: 480N
- Optimized for Installation: Designed for secure mounting using M5 countersunk screws.
Specifications

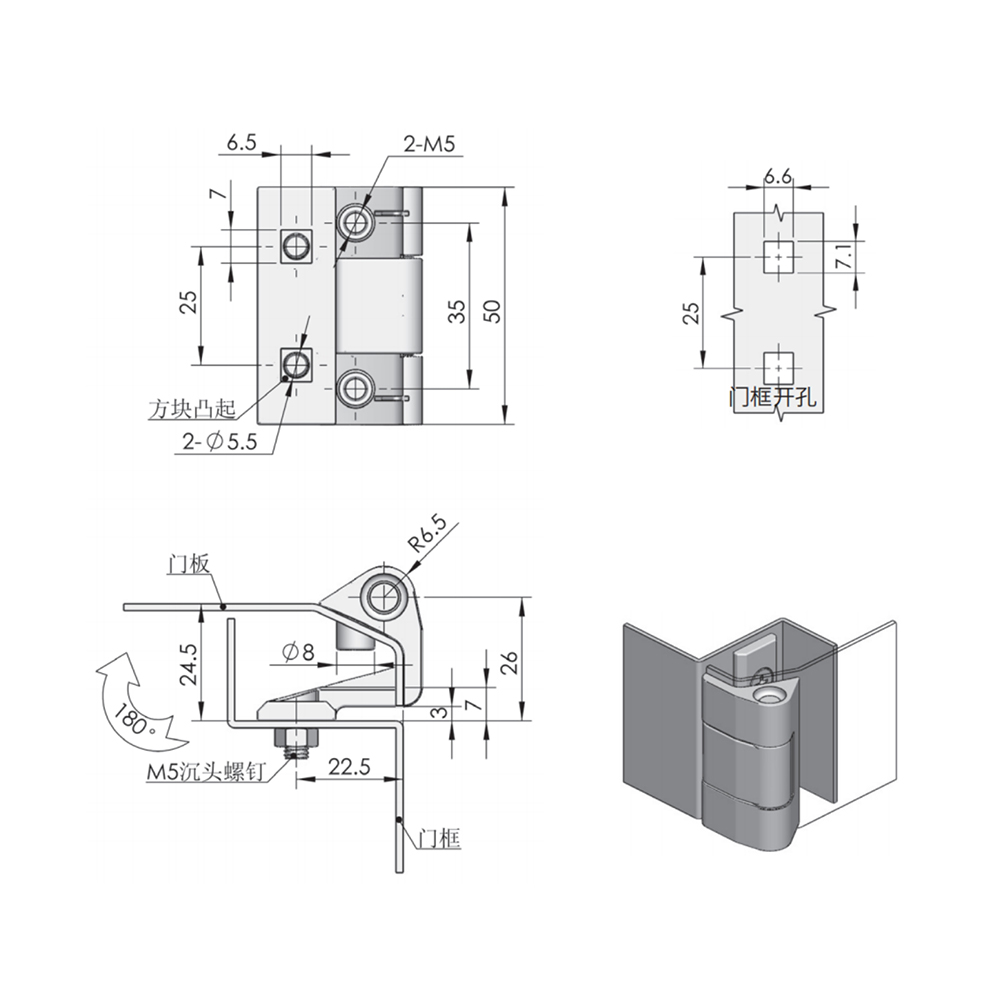

- Dimensions: Detailed measurements available in the technical diagram.
- Height: 50 mm
- Width: 25 mm
- Mounting hole diameter: Ø5.5 mm
- Variants:
- Black Light Gloss: CL216Z1A001
Applications
This hinge is suitable for:
- Industrial equipment doors
- Machinery enclosures
- Access panels in electrical cabinets
