CL215 Hinge with 180° Rotation, Zinc-Plated Carbon Steel with PA Insert
CL215 Hinge with 180° Rotation, Zinc-Plated Carbon Steel with PA Insert

CL215 Hinge with 180° Rotation, Zinc-Plated Carbon Steel with PA Insert

 The CL215 concealed hinge is designed for applications requiring robust load-bearing capacity and smooth 180° rotation. Crafted from durable carbon steel with a corrosion-resistant zinc-plated finish, it features a PA (polyamide) insert for enhanced stability and wear resistance. Ideal for industrial enclosures, machinery panels, and other heavy-duty applications, this hinge ensures reliability and functionality in demanding environments.

Material:

  • Base Material: Carbon steel
  • Insert Material: PA (polyamide)
  • Finish: Zinc plating for corrosion resistance and enhanced durability

Surface Finish and Appearance:

  • Smooth zinc-plated finish with a sleek silver appearance
Products Categories
Get A Free Quote
Contact Form Demo (#3)

Key Features

  • Allows a full 180° opening angle for maximum accessibility
  • Robust construction to withstand axial loads up to 850N and radial loads up to 750N
  • Compact design compatible with various industrial equipment setups
  • Easy installation with M6 countersunk screws

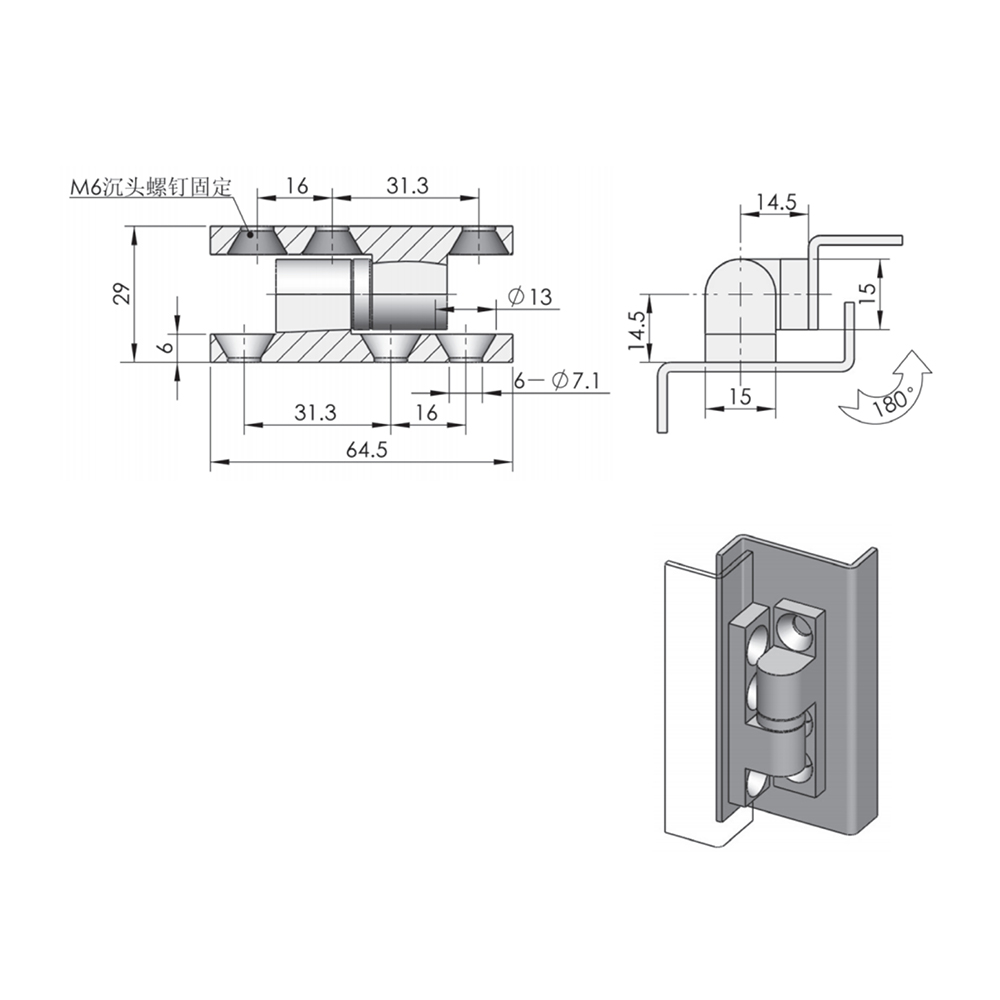

Specifications



 CL215 Hinge with 180° Rotation, Zinc-Plated Carbon Steel with PA Insert

  • Dimensions:
    • Length: 64.5 mm
    • Height: 29 mm
    • Mounting hole diameter: Ø7.1 mm
  • Performance Ratings:
    • Radial load capacity: 750N
    • Axial load capacity: 850N
  • Rotation Angle: 180°

Applications

  • Industrial equipment enclosures
  • Electrical cabinets and control panels
  • Machinery access doors
  • Heavy-duty access systems requiring high load tolerance

Keywords

180° concealed hinge, CL215 hinge, industrial hinge, heavy-duty zinc-plated hinge, PA insert hinge, axial load hinge, radial load hinge
