CL210 High-Performance Hinge, 110° Opening
The CL210 Hinge is a robust and efficient solution designed for industrial and commercial use. This hinge supports a 110° opening angle, providing reliable and smooth functionality. It is crafted from zinc alloy with a carbon steel shaft and PA bushing, ensuring durability and long-lasting performance under high stress.
Material and Finish
- Material:
- Zinc alloy body for structural strength.
- Carbon steel shaft for stability.
- PA (polyamide) bushings for smooth rotation.
- Surface Finish:
- Black light gloss
- Nano matte
Products Categories
Get A Free Quote
Key Features
- Opening Angle: 110° rotation for controlled access.
- High Load Capacity:
- Radial load: 720N
- Axial load: 830N
- Precision Engineering: Optimized for easy and secure mounting in confined spaces.
Specifications

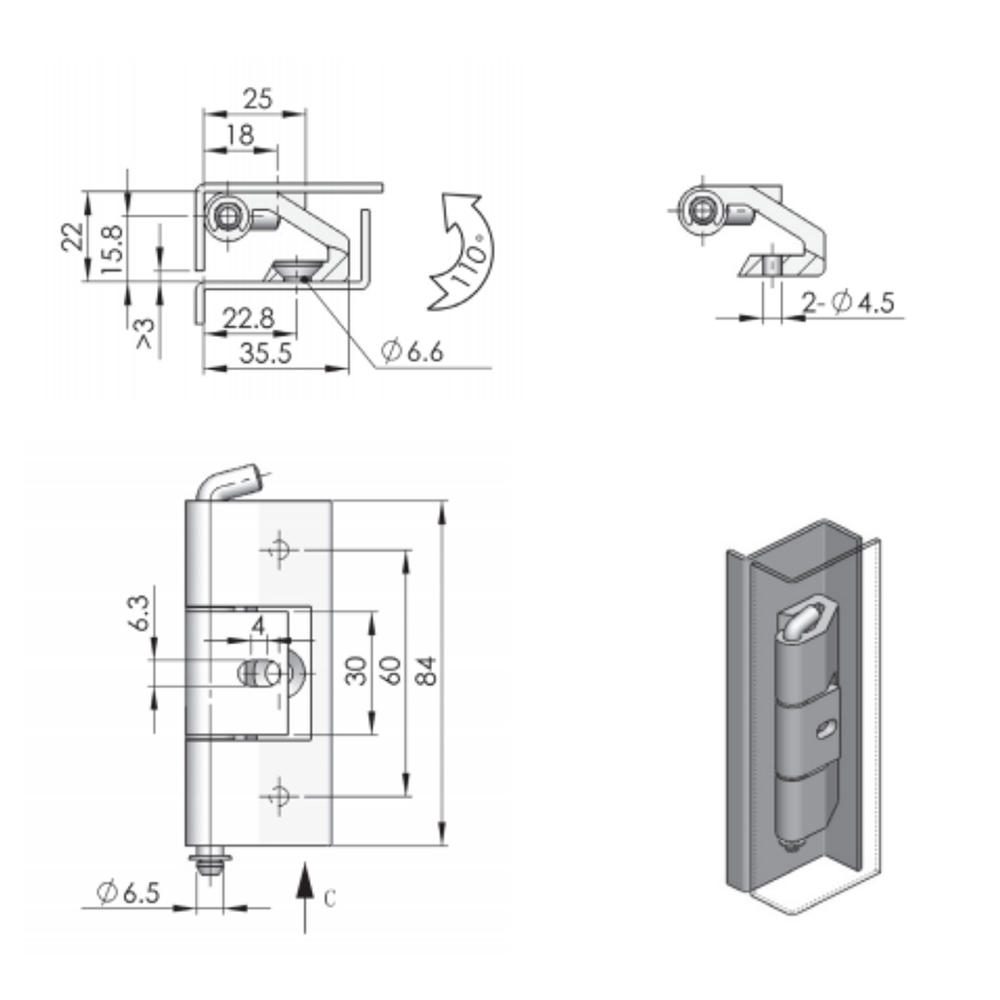

- Dimensions: See technical diagram for detailed sizing and hole layout.
- Total length: 60 mm
- Width: 30 mm
- Mounting hole diameter: Ø4.5 mm
- Variants:
- Black Light Gloss: CL210Z1A001
- Nano Matte Finish: CL210Z2B001
Applications
This hinge is ideal for:
- Industrial machinery enclosures
- Electrical and electronic panels
- Access doors and high-load equipment covers
Keywords
CL210, zinc alloy hinge, 110° hinge, black light gloss hinge, nano matte hinge, industrial hinge, PA bushing hinge, radial load 720N hinge, axial load 830N hinge, durable enclosure hinge.
