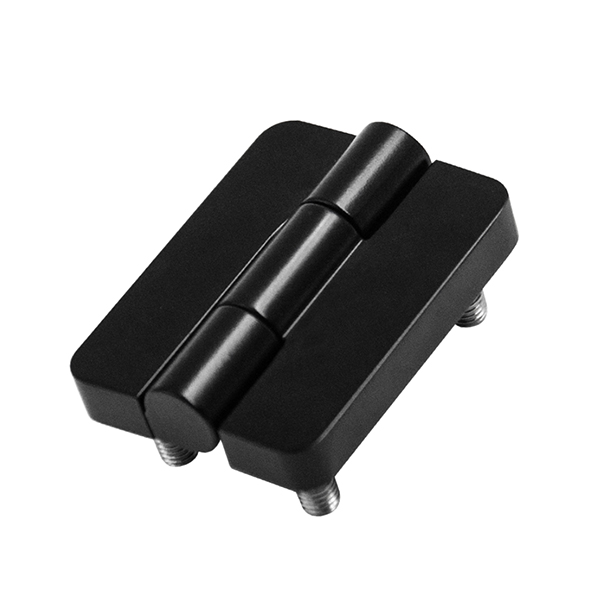

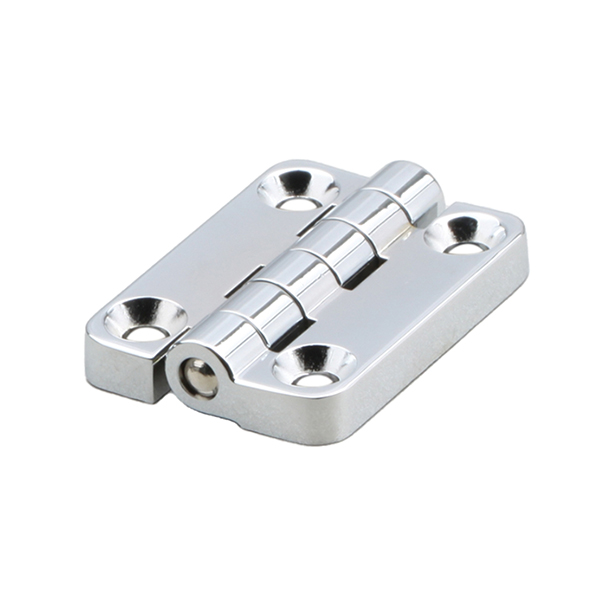

CL209 Series – Zinc Alloy Concealed Mount Hinges for Industrial Enclosures, with 160° and 180° Opening Angles
The CL209 hinge series offers durable, high-performance hinges designed for industrial enclosures and doors requiring reliable pivot points with high load capacities. This series includes options for radial and axial loads, with adjustable mounting to suit various configurations. The CL209 hinges are constructed from zinc alloy with either carbon steel pins or SUS304 stainless steel, delivering both strength and corrosion resistance. Available with black powder coat or nano satin finishes.
Material:
- Hinge Body: Zinc Alloy
- Pins: Carbon Steel (CL209-1/CL209-2) or SUS304 (CL209-1C)
Surface Finish:
- Black powder coat (for CL209-4-2 and CL209-N models)
- Nano Satin (for CL209-1C model)
Color/Appearance:
- Black and Satin
Key Features
- 160° opening angle for CL209-1 and CL209-2
- 180° opening angle for CL209-1C
- High static load capacity for demanding applications
- Concealed mount design enhances aesthetic and security
- Suitable for flush or offset mounting
- Screws not included; installation requires M5 fasteners

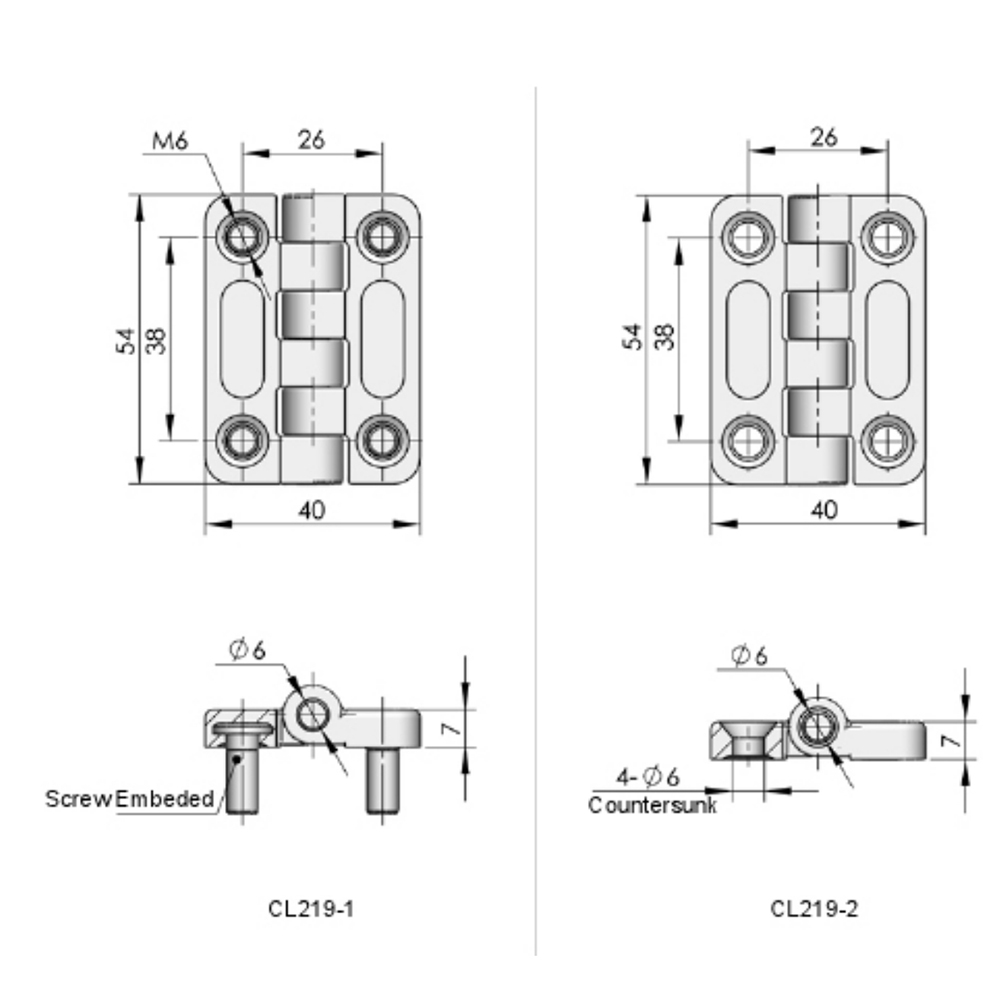

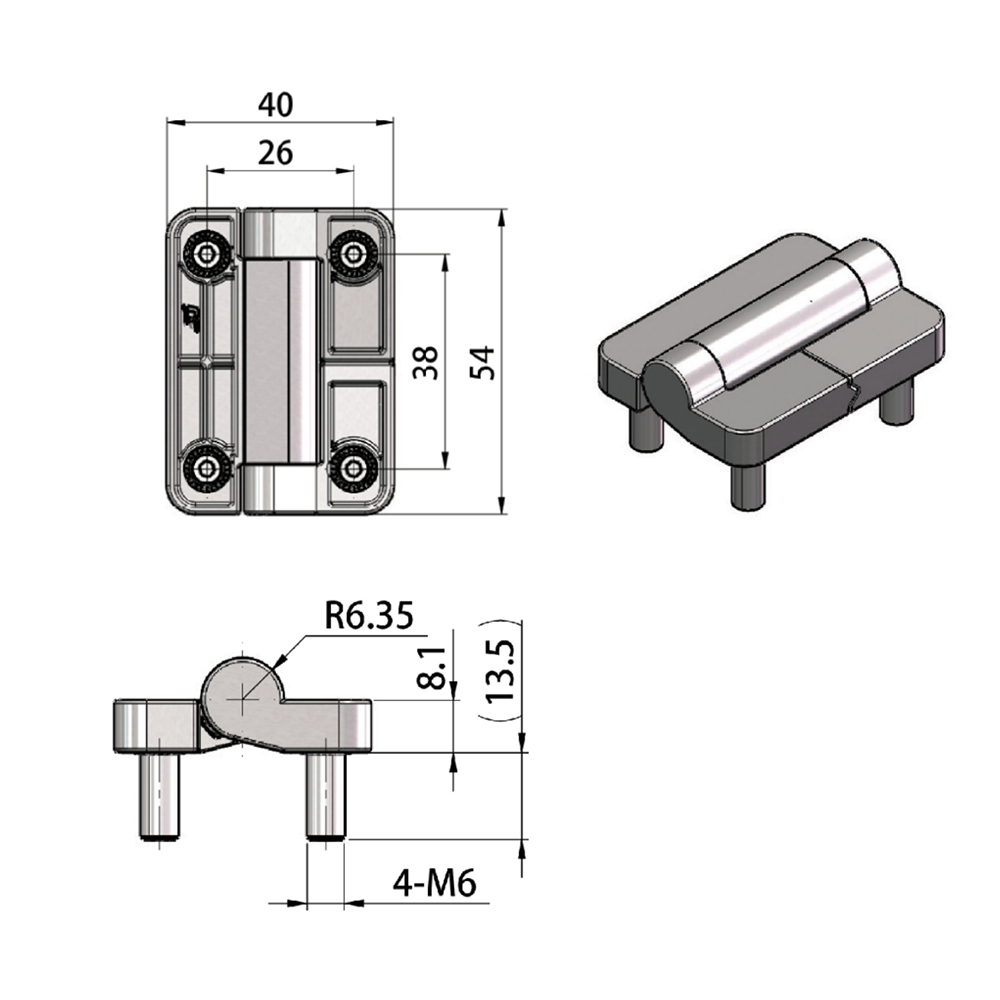

Specification
- Radial Load Capacity: Up to 1500N for CL209-1/CL209-2, 1800N for CL209-1C
- Axial Load Capacity: Up to 1800N for CL209-1/CL209-2, 1350N for CL209-1C
- Recommended Screw Tightening Torque: 10N.m for CL209-1/CL209-2, 9N.m for CL209-1C
Applications
Ideal for use in industrial enclosures, control cabinets, and heavy-duty access doors where durability, load-bearing capacity, and concealed mounting are essential.
