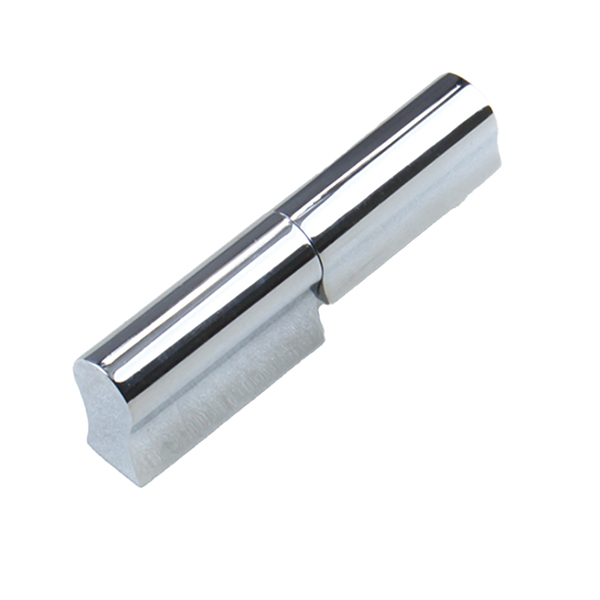

CL204-1 Concealed Hinge, Zinc Alloy, 180-Degree Opening Angle, High Load Capacity
The CL204-1 concealed hinge is designed for high-performance applications requiring a compact and robust hinge solution. Constructed from durable zinc alloy, this hinge allows a full 180-degree opening angle, making it ideal for enclosures and cabinets where easy access is essential. Engineered to handle significant axial and radial loads, the CL204-1 offers reliable support in demanding environments.
Material:
Zinc Alloy
Surface Finish:
Polished finish
Color/Appearance:
Metallic silver
Products Categories
Get A Free Quote
Key Features
- 180-degree opening angle for full access
- High static load capacity (Axial: 980N, Radial: 2800N)
- Concealed design for a sleek appearance and enhanced security
- Durable zinc alloy construction for extended service life

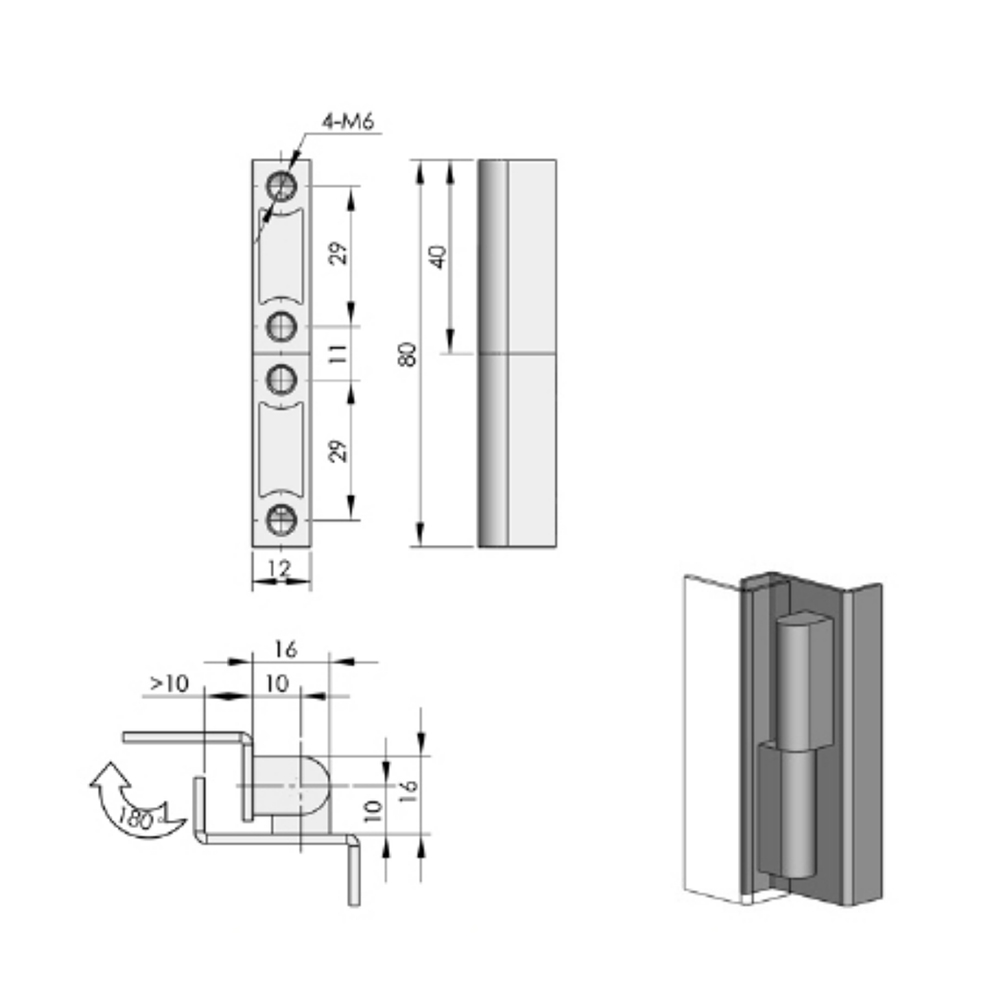

Specifications
- Axial Load Capacity: 980N
- Radial Load Capacity: 2800N
- Dimensions: Length: 80mm, Width: 12mm
- Mounting Hole: 4 x M6 screws
Applications
- Industrial enclosures
- Server cabinets
- Electrical and control panels
