CL203-3 Heavy-Duty Concealed Hinge, 180° Opening
The CL203-3 Concealed Hinge is a robust and versatile solution designed for industrial and commercial applications. Featuring a symmetrical structure, it supports 180° wide opening for left or right door configurations, enhancing operational flexibility. Manufactured from durable zinc alloy and reinforced with PA (polyamide) pads, this hinge ensures long-lasting performance and stability under demanding conditions.
Material and Finish
- Material: High-strength zinc alloy with PA pads for enhanced durability.
- Surface Finish:
- Black matte
- Black light gloss
Products Categories
Get A Free Quote
Key Features
- Opening Range: 180° rotation for convenient access.
- Symmetrical Design: Left-hand (CL203-3-Z) and right-hand (CL203-3-Y) door compatibility.
- High Load Capacity: Radial load of 3300N and axial load of 880N.
- Precision Design: Secure mounting holes and reliable structural integrity.
Specifications

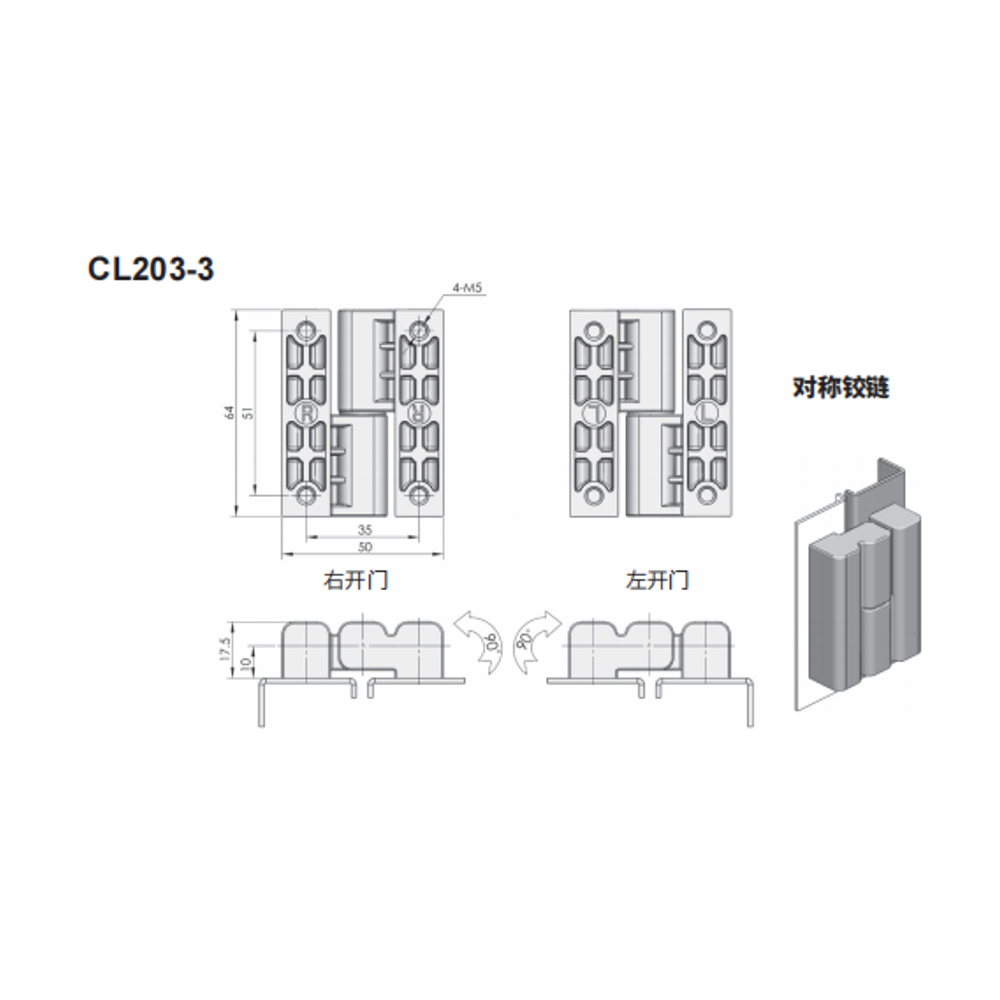

- Dimensions: 64 mm × 50 mm, with mounting hole spacing as per the diagram.
- Variants:
- Black Light Gloss: CL203Z1A008 (Left), CL203Z1A009 (Right)
- Black Matte: CL203Z1B015
Applications
This hinge is suitable for:
- Industrial equipment covers
- Electrical enclosures
- Machinery panels
- Access hatches and doors requiring durability and stability
