CL203-2B and CL203-7 Compact Concealed Hinges, High Load Capacity, Zinc Alloy

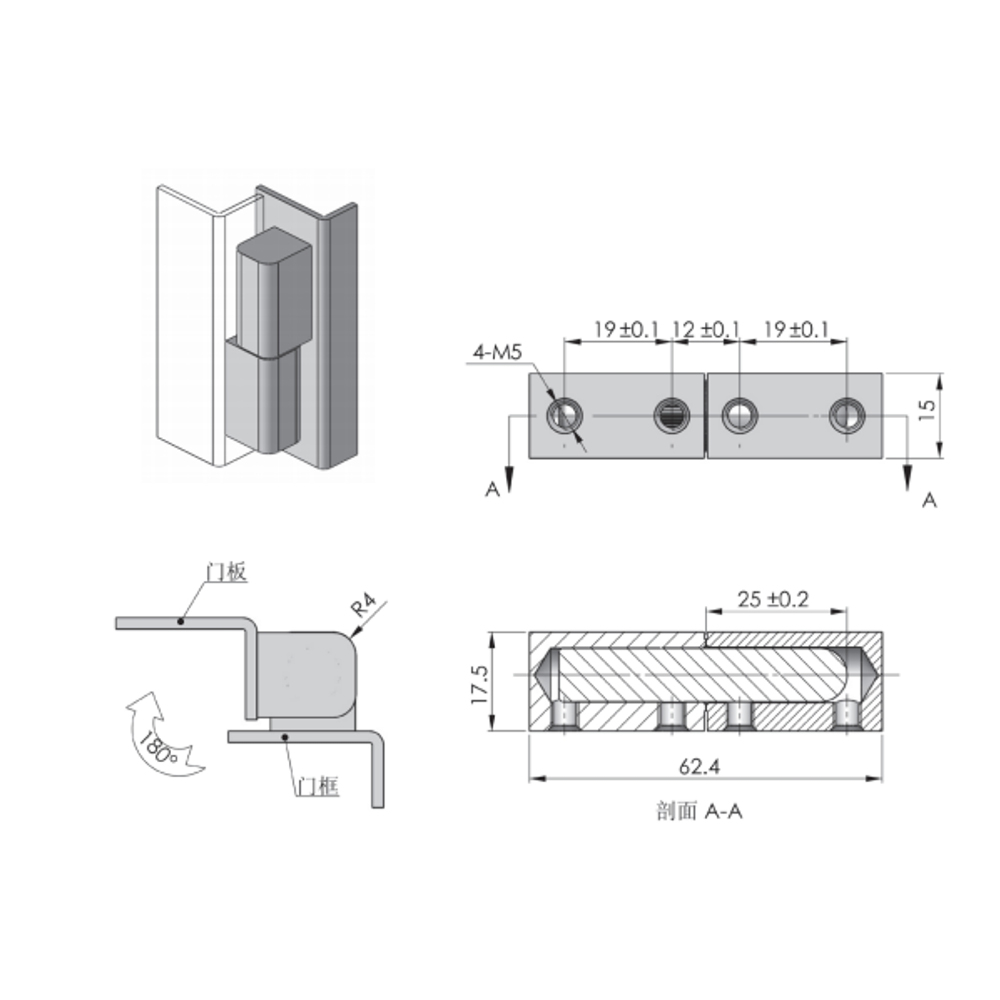

The CL203 series includes concealed hinges designed for precision and durability. Constructed from premium zinc alloy, these hinges are built to withstand demanding environments. The CL203-2B model features a sleek angular design, while the CL203-7 model offers a rounded, polished appearance. Both models support 180° opening angles and are optimized for high load capacities, making them ideal for industrial enclosures, cabinets, and control panels.
Material and Finish:
- Material: Zinc alloy for hinge body and rotating pin
- Surface Finish:
- CL203-2B: Polished surface for a refined appearance
- CL203-7: Brushed finish for enhanced durability and aesthetics
Products Categories
Get A Free Quote
Key Features
- Opening Angle: 180° for versatile access
- High Load Capacity:
- Radial Load: 600N
- Axial Load: 1500N
- Compact and Concealed Design: Ideal for installations requiring a seamless and modern appearance
- Durable Construction: Designed for long-lasting performance in industrial environments
Specifications

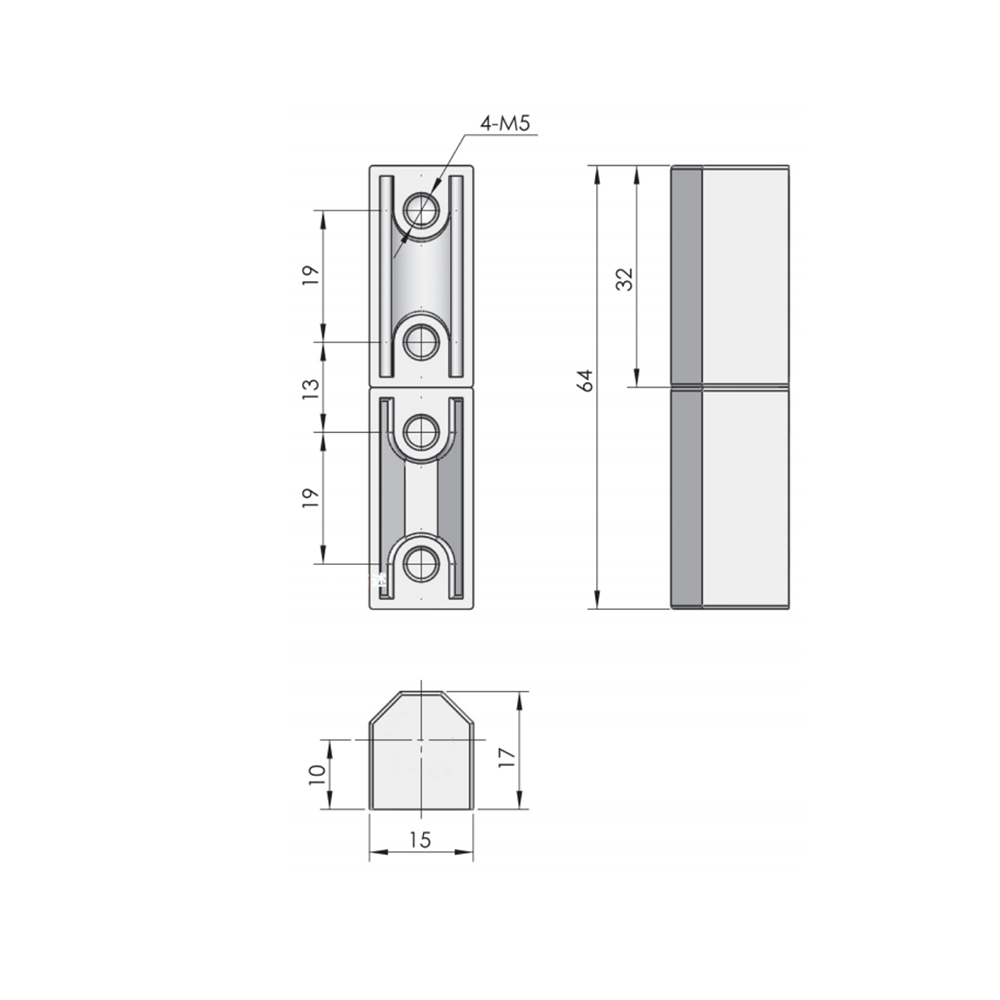

- Dimensions:
- Length: 64mm
- Width: 32mm
- Thickness: 15mm (CL203-2B) and 15mm (CL203-7)
- Mounting Style: Screw-on with four M5 mounting holes for secure installation
- Structure: Precision-engineered for smooth operation
Applications
Suitable for use in industrial enclosures, control cabinets, machinery covers, and doors where concealed hinges provide both functionality and aesthetics.
Keywords
CL203-2B, CL203-7, zinc alloy hinge, concealed hinge, 180° hinge, industrial hinge, compact hinge, high load hinge
