CL203-2 Compact Coaxial Hinge, 180° Opening
The CL203-2 Coaxial Hinge is a compact and durable solution tailored for industrial and commercial applications. It features a sleek design with a 180° opening angle, ideal for enclosures requiring efficient space utilization. Crafted from zinc alloy and reinforced with PA (polyamide) pads, this hinge ensures reliable performance, even under significant load conditions.
Material and Finish
- Material: High-quality zinc alloy with PA pads for increased durability.
- Surface Finish:
- Black matte
- Black light gloss
Products Categories
Get A Free Quote
Key Features
- Opening Range: 180° rotation for optimal access.
- Compact Design: Ideal for applications with limited space.
- High Load Capacity: Radial load of 650N and axial load of 1550N.
- Precise Mounting: Integrated mounting holes designed for secure and stable installation.
Specifications
- Dimensions:
- Height: 64 mm
- Body Width: 19 mm

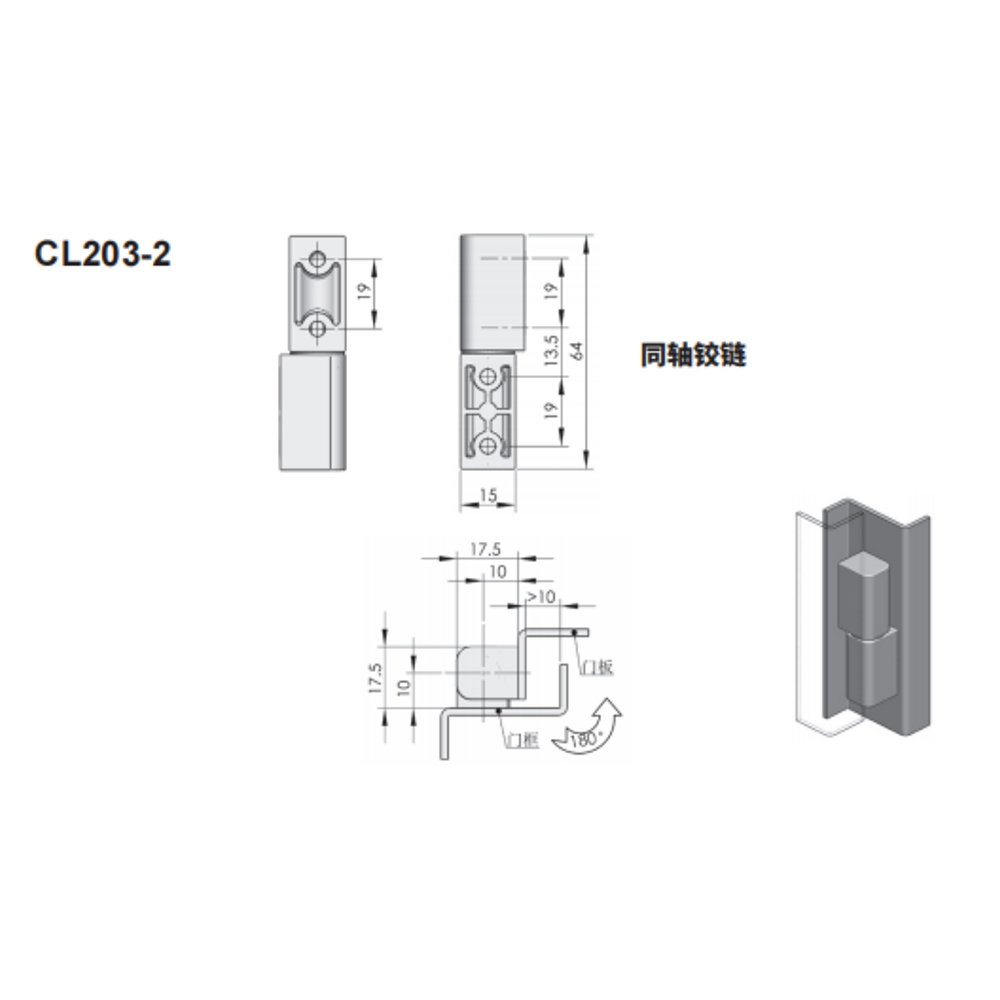

- Mounting hole spacing as illustrated in the technical diagram.
- Variants:
- Black Light Gloss: CL203Z1A003
- Black Matte: CL203Z1B004
- Nano Matte Finish: CL203Z2Z004
Applications
This hinge is suitable for:
- Compact industrial equipment
- Electrical cabinets
- Machinery enclosures
- Doors and panels requiring reliable, high-load hinges
Keywords
CL203-2, coaxial hinge, compact hinge, 180° opening hinge, zinc alloy hinge, black matte hinge, industrial hinge, radial load 650N hinge, axial load 1550N hinge, compact panel hinge.
