CL173 Stainless Steel Hinge, 90° Opening, Compact and Durable Design
The CL173 hinge is a compact and durable solution designed for applications requiring precise and reliable performance. Made from high-quality stainless steel, it provides excellent corrosion resistance and long-term durability. With a 90° opening angle and robust load-bearing capabilities, the CL173 is ideal for small enclosures and doors in industrial environments. It supports a maximum radial load of 180N and an axial load of 75N.
Material and Finish:
- Material: Stainless steel for both hinge plates and pin
- Surface Finish: Natural stainless steel finish for enhanced corrosion resistance
Products Categories
Get A Free Quote
Key Features
- Opening Angle: 90° for efficient and limited access needs
- Load Capacity:
- Radial Load: 180N
- Axial Load: 75N
- Compact Design: Ideal for enclosures and doors in space-constrained applications
- Corrosion Resistant: Stainless steel construction ensures durability in harsh environments
Specifications

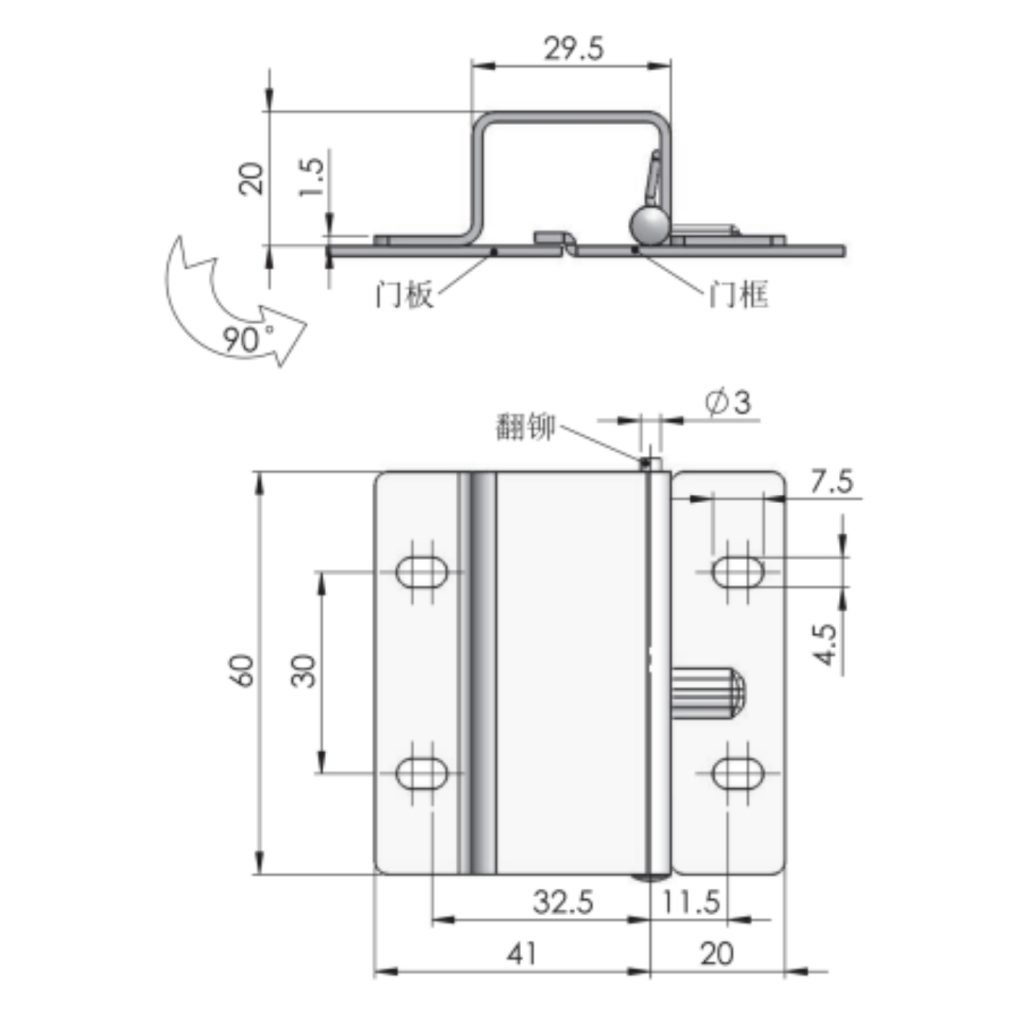

- Dimensions: Refer to the technical drawing for precise details (L: 60mm, W: 41mm, H: 20mm)
- Mounting Style: Screw-on design with countersunk mounting slots
- Structure: Compact structure with optimized load distribution
Applications
The CL173 hinge is suitable for use in industrial enclosures, small equipment doors, and control panels requiring reliable and durable hinge solutions.
Keywords
CL173, stainless steel hinge, 90° hinge, compact hinge, durable hinge, industrial hinge, corrosion-resistant hinge
