CL170 Continuous Hinge, Carbon Steel with Zinc Plating, High Load Capacity
The CL170 is a durable continuous hinge designed for industrial and heavy-duty applications. Manufactured from carbon steel with a zinc-plated finish, it provides excellent corrosion resistance and long-term performance. With a maximum radial load capacity of 800N and an axial load capacity of 600N, the CL170 is ideal for applications requiring high strength and reliability. Its continuous design ensures uniform support across the entire length, making it suitable for enclosures, doors, and cabinets.
Material and Finish:
- Material: Carbon steel for the hinge plates and pin
- Surface Finish: Zinc plating for enhanced corrosion protection
Key Features
- High Load Capacity:
- Radial Load: 800N
- Axial Load: 600N
- Continuous Design: Provides consistent support and alignment for large or heavy panels
- Corrosion Resistant: Zinc-plated finish ensures durability in challenging environments
- Robust Construction: Built for industrial use and long service life
Specifications

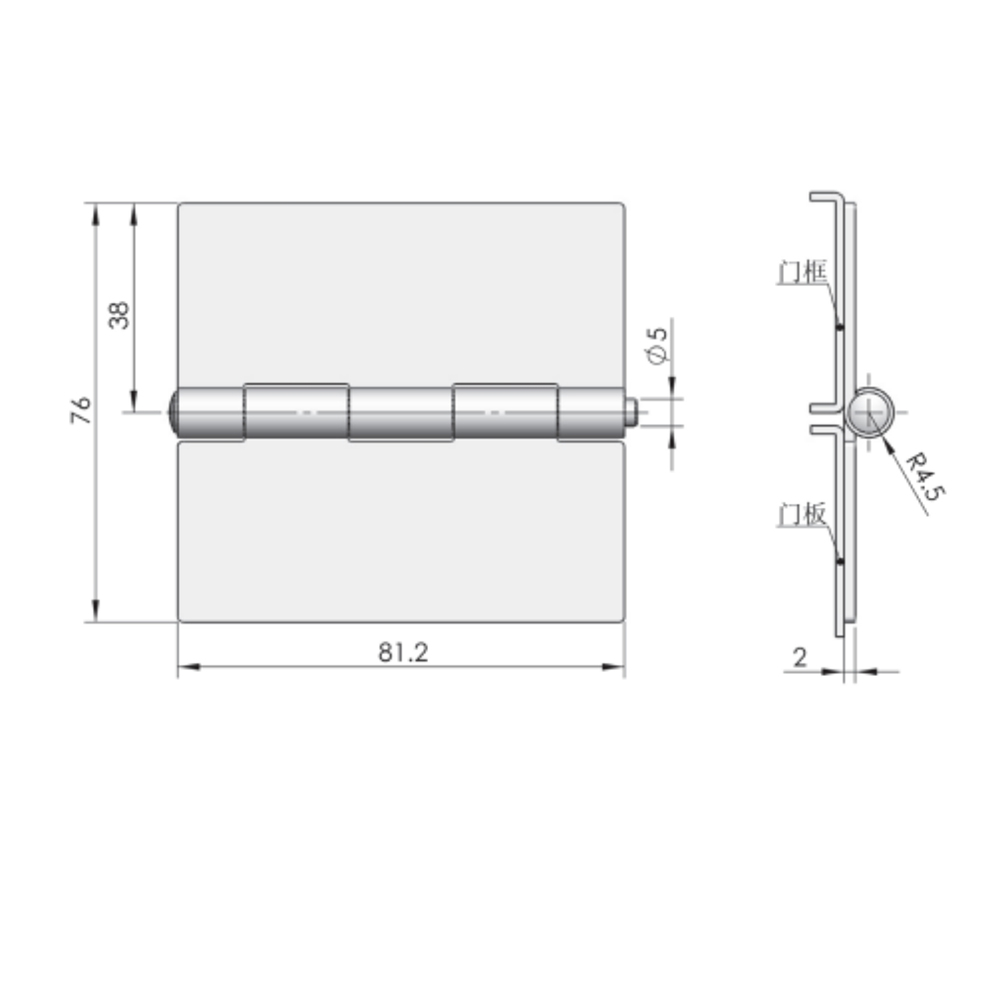

- Dimensions: See technical drawing for detailed specifications (L: 81.2mm, W: 38mm, H: 2mm)
- Mounting Style: Weld-on installation for secure and permanent fixing
- Structure: Continuous hinge design to evenly distribute stress
Applications
The CL170 is commonly used in industrial machinery, control panels, equipment enclosures, and heavy doors requiring durable and reliable hinge solutions.
Keywords
CL170, continuous hinge, carbon steel hinge, zinc-plated hinge, high load hinge, piano hinge, industrial hinge
