CL169 Fixed and Movable Hinges, Zinc-Plated Alloy, High Load Capacity
The CL169 hinge combines fixed and movable components to deliver exceptional flexibility and performance for industrial applications. Constructed with a zinc alloy body, carbon steel moving parts, and a robust rotating pin, the hinge features a zinc-plated finish for superior corrosion resistance. The CL169 supports radial loads of up to 700N and axial loads of up to 500N, ensuring reliable performance in demanding environments.
Material and Finish:
- Material: Zinc alloy (body), carbon steel (moving parts and pin)
- Surface Finish: Zinc plating for enhanced durability and corrosion resistance
Products Categories
Get A Free Quote
Key Features
- Load Capacity:
- Radial Load: 700N
- Axial Load: 500N
- Flexible Design: Combines fixed and movable hinge structures for versatile use
- Corrosion Resistant: Zinc-plated finish protects against wear and environmental exposure
- Durable Construction: Engineered for industrial applications requiring long service life
Specifications

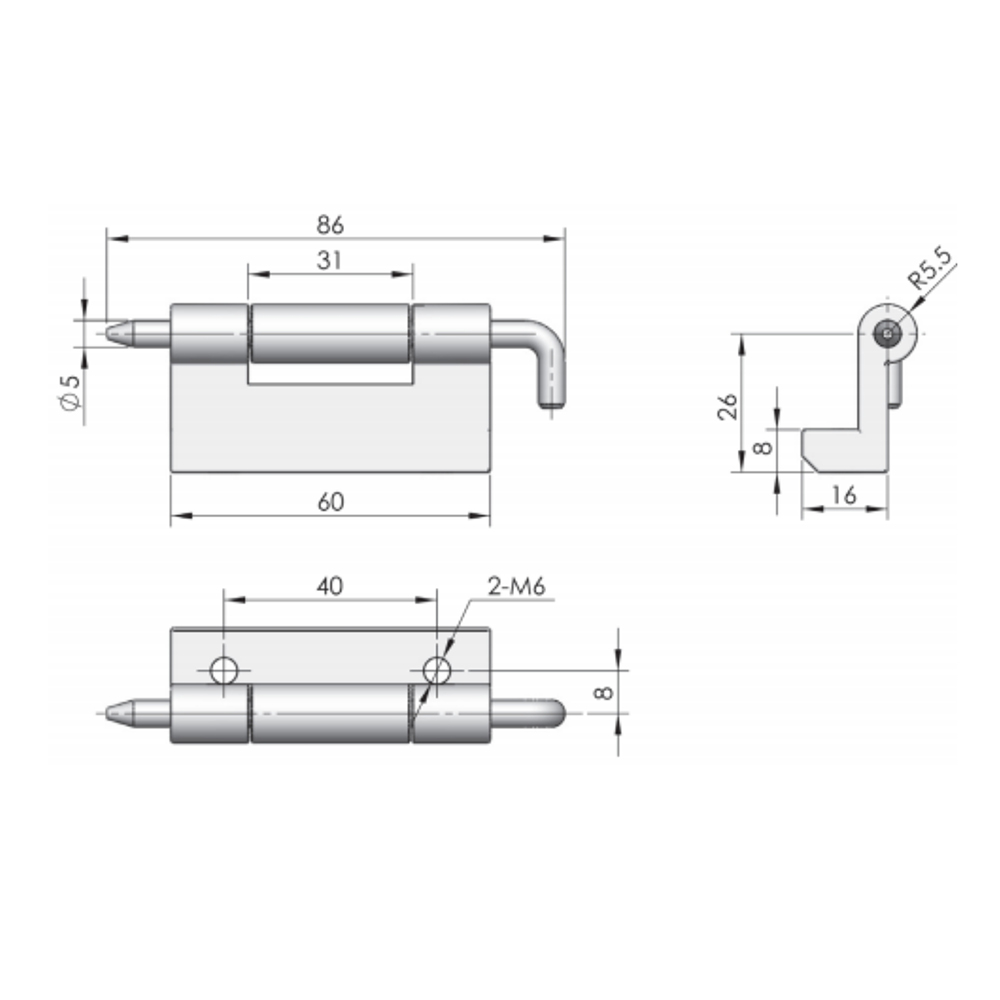

- Dimensions: Refer to the attached technical drawing for precise measurements
- Mounting Style: Screw-on with two M6 mounting holes for secure installation
- Structure: Compact and functional for varied installation scenarios
Applications
The CL169 is ideal for industrial enclosures, equipment doors, and control panels requiring durable and reliable hinge solutions.
