CL154 Industrial Concealed Hinge, 135° Opening, Blue-Grey Finish, High Load Capacity
The CL154 is a high-performance concealed hinge designed for heavy-duty industrial applications. Constructed from durable zinc alloy with a stainless steel rotating pin, it features a blue-grey (RAL 7012) spray-painted finish for a professional look and enhanced corrosion resistance. The hinge supports a maximum opening angle of 135°, making it ideal for equipment doors and enclosures. With a radial load capacity of 2500N and an axial load capacity of 2000N, the CL154 ensures reliable operation under high stress.
Material and Finish:
- Material: Zinc alloy hinge plates with a stainless steel rotating pin
- Surface Finish: Blue-grey (RAL 7012) spray coating
Key Features
- Opening Angle: 135° for versatile accessibility
- High Load Capacity:
- Radial Load: 2500N
- Axial Load: 2000N
- Concealed Design: Enhances the aesthetic and security of installations
- Durable Materials: Zinc alloy construction with stainless steel pin for corrosion resistance
Specifications

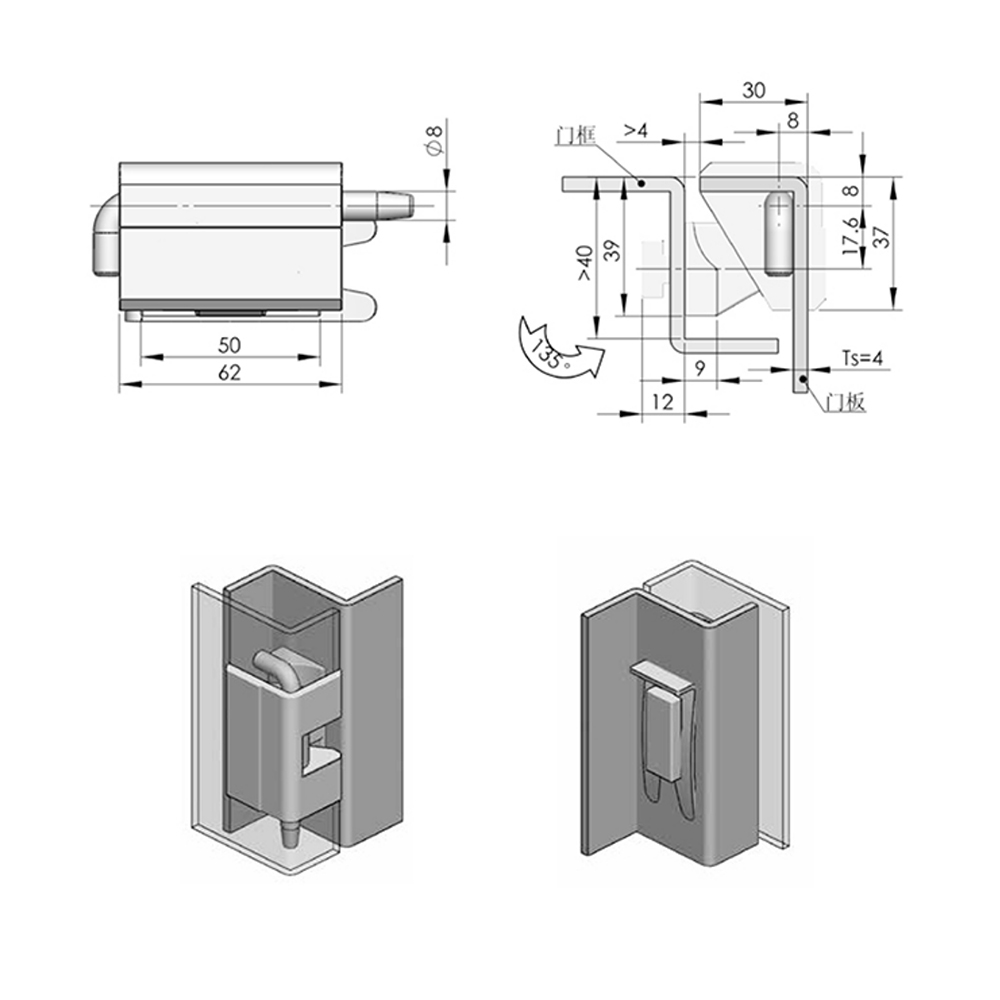

- Dimensions: See attached technical drawings for precise measurements
- Mounting Style: Concealed installation with custom doorframe and panel cutouts
- Variant Availability:
- CL154-3: Additional mounting options for specific industrial requirements
Applications
Commonly used in industrial equipment doors, electrical cabinets, and enclosures where aesthetic appeal and robust performance are critical.
