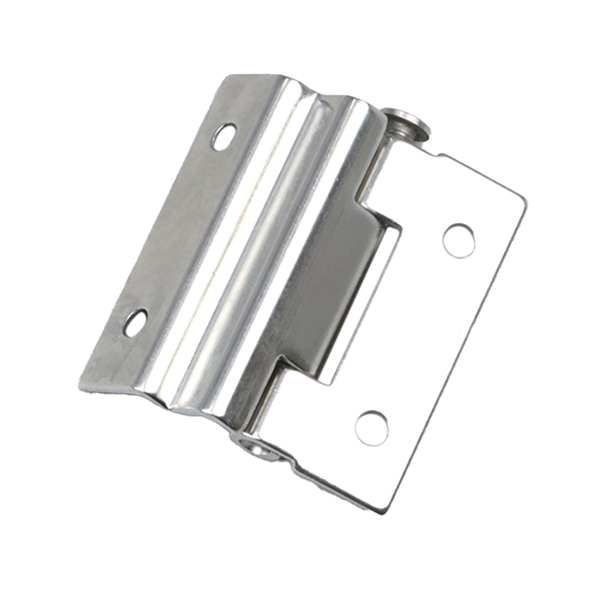

CL152 Concealed Hinge, 180° Opening Angle
The CL152 hinge is crafted from high-quality stainless steel and features a concealed design, providing a clean, professional appearance. Designed for durability and reliability, this hinge can support a maximum static load of 1170N in axial direction and 620N in radial direction, making it suitable for various industrial applications requiring secure and robust hinge solutions.
Material: Stainless Steel (Hinge Plates and Pin)
Surface Finish: Electroplated for enhanced corrosion resistance
Color/Appearance: Metallic silver finish
Key Features
- Concealed design for a clean aesthetic
- Durable stainless steel construction
- Electroplated surface for corrosion resistance
- 180° opening angle for full access
Specifications
- Axial Load Capacity: 1170N
- Radial Load Capacity: 620N

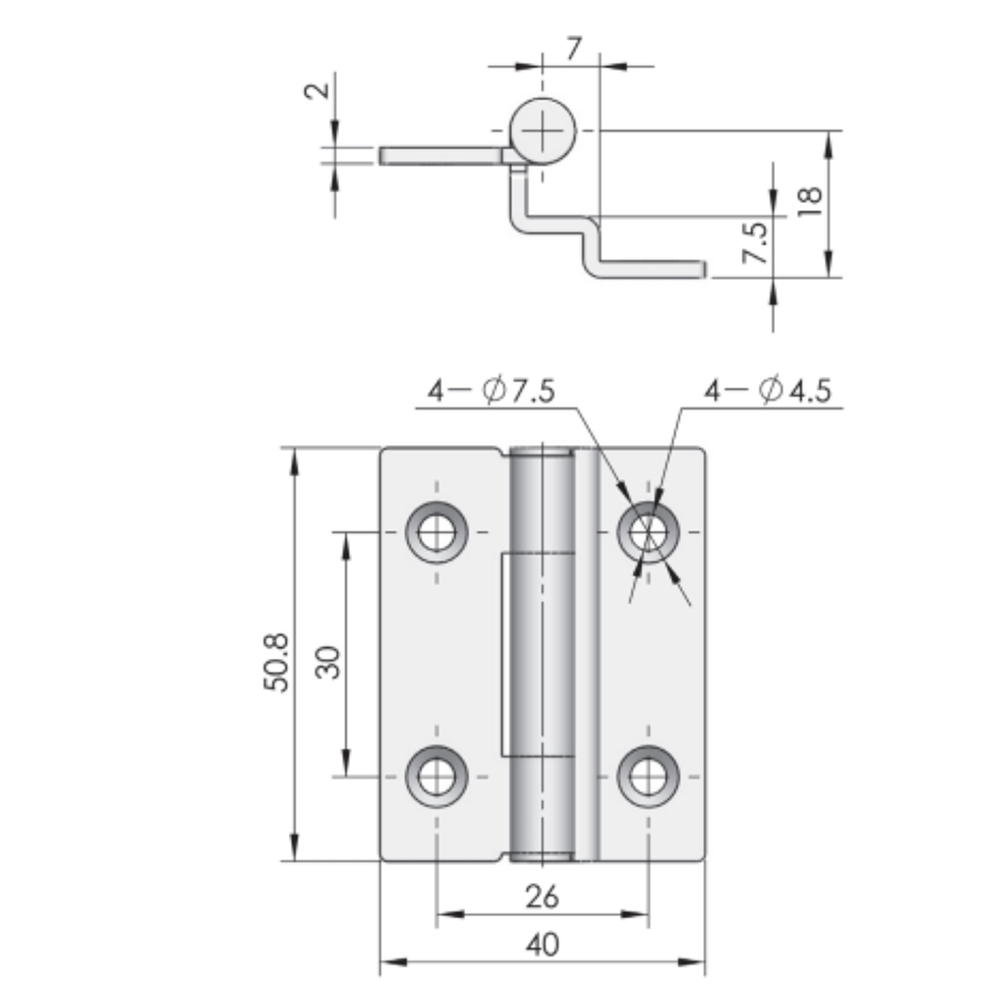

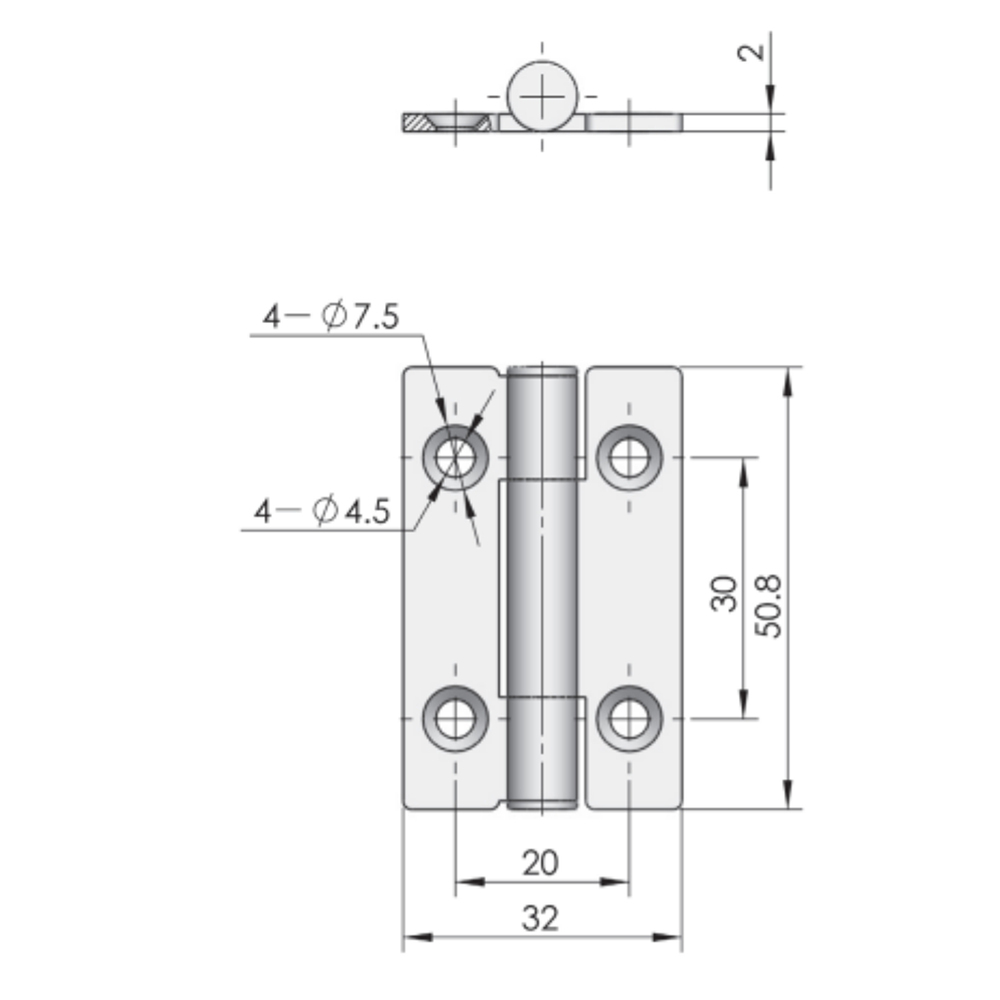

- Dimensions: Refer to diagram for detailed measurements
Applications
Suitable for industrial equipment, cabinets, enclosures, and other applications requiring a strong, concealed hinge.
Keywords
CL152, Concealed Hinge, 180° Opening, Stainless Steel Hinge, Industrial Hinge, High Load Capacity Hinge, Electroplated Hinge, Durable Hinge, Secure Hinge Solution
