CL139 Detachable Concealed Hinge, 180° Opening Angle
The CL139 detachable hinge offers a sleek design ideal for concealed installations. This hinge is engineered for efficient door mounting, allowing a 180° opening angle and easy detachment for maintenance. Made from a robust zinc alloy with a sand-textured black finish, it ensures durability and smooth operation in various applications.
Material: Zinc alloy with steel pin, PA bushings
Surface Finish: Sand-textured black, white zinc plating
Color/Appearance: Black with zinc accents
Products Categories
Get A Free Quote
Key Features
- Detachable hinge with easy assembly and disassembly
- Provides a 180° opening angle for optimal accessibility
- Concealed design for a clean, streamlined look
- Durable zinc alloy construction with corrosion-resistant finish

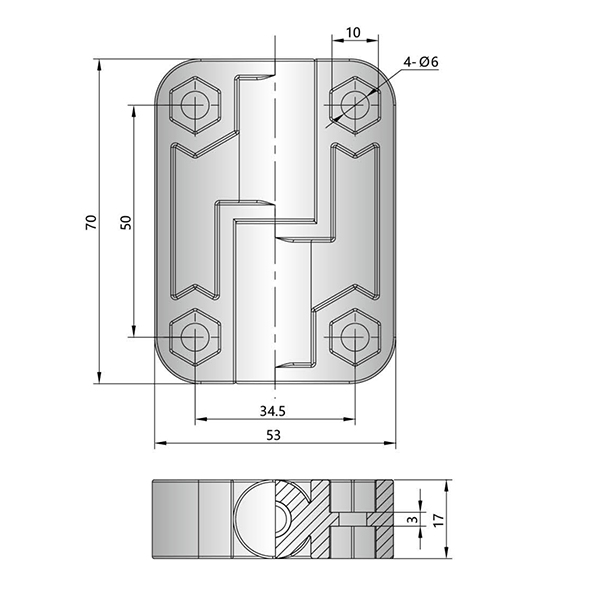

Specifications
- Dimensions: 70 mm x 50 mm
- Borehole Diameter: 6 mm
- Maximum Load Capacity (Radial): 625N
- Maximum Load Capacity (Axial): 204N
- Weight: 271 grams
Applications
Suitable for cabinets, doors, and enclosures requiring concealed, easy-to-detach hinges with high durability.
Keywords
CL139, Concealed Hinge, Detachable Hinge, Zinc Alloy Hinge, 180 Degree Hinge, Black Finish Hinge, Cabinet Hinge, Door Hinge
