CL137 Concealed Hinge, 135° Opening Angle
The CL137 Concealed Hinge is designed for applications requiring a smooth and durable hinge mechanism. Its construction enables a 135° opening angle, suitable for various industrial and commercial uses. This hinge features a high-grade steel structure and includes reliable pins, making it both robust and long-lasting. Its zinc-plated finish provides added corrosion resistance and a professional appearance.
Material
- Hinge Body: Carbon Steel
- Pin: Steel
Surface Finish
Zinc-Plated
Color/Appearance
Chrome-like finish due to zinc plating
Key Features
- Durable construction suitable for heavy-duty applications
- Concealed hinge design for a clean, streamlined look
- 135° maximum opening angle for flexible access
- Zinc-plated finish for corrosion resistance and aesthetics
Specifications
- Radial Load: 520N
- Axial Load: 375N

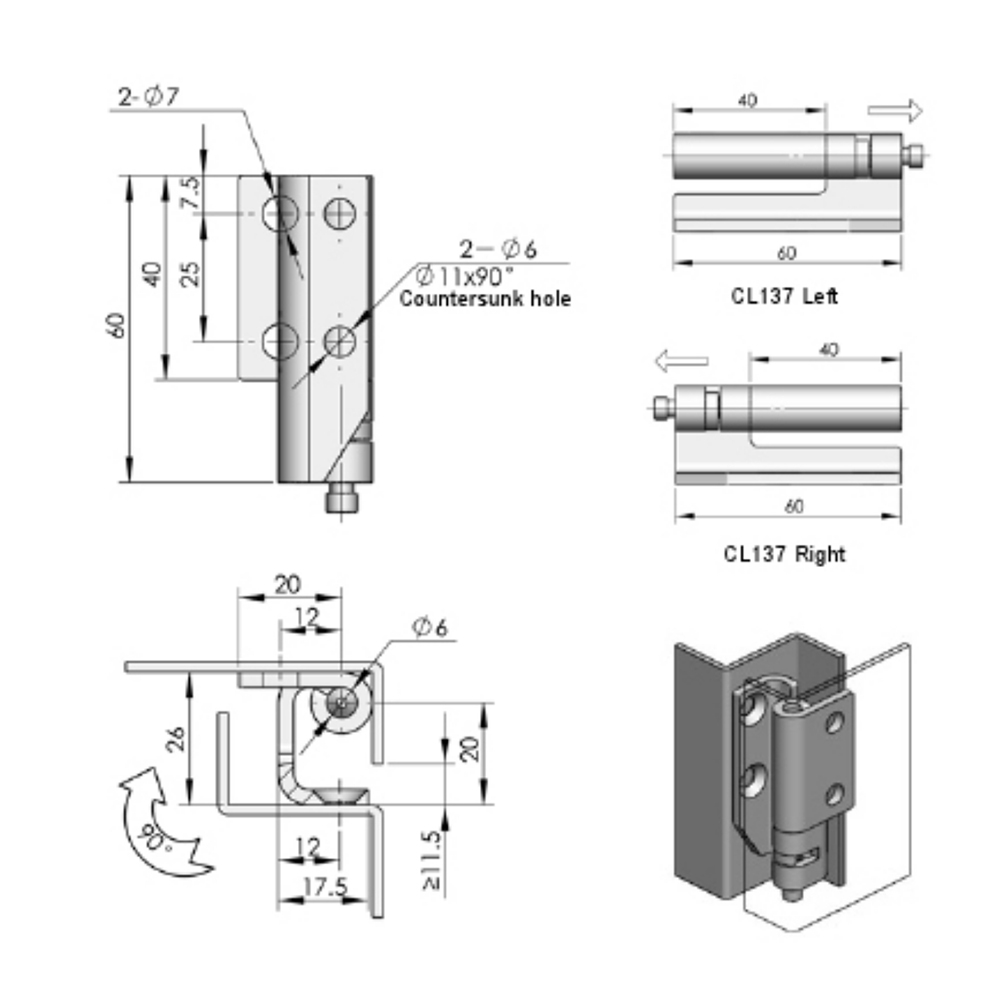

- Dimensions: Refer to technical drawing for precise measurements
Applications
Ideal for enclosures, machinery doors, and various industrial equipment requiring concealed hinges with restricted opening angles.
