CL132-2 Concealed Hinge, 90° Opening, Electrolytic Finish, Stainless Steel Construction
The CL132-2 Concealed Hinge is designed for applications requiring secure and limited-access entry. With a 90-degree opening angle, this hinge is crafted from high-quality stainless steel and finished with an electrolytic process to enhance durability and corrosion resistance. Suitable for installations where aesthetic appeal and robust performance are essential, this hinge provides reliable functionality in compact enclosures.
Material:
Stainless steel hinge body
Surface Finish:
Electrolytic finish
Color/Appearance:
Silver metallic
Products Categories
Get A Free Quote
Key Features
- Concealed design for a clean and professional appearance
- 90-degree opening angle for restricted access control
- Durable stainless steel construction ensuring longevity
- Electrolytic finish providing corrosion resistance
Specifications

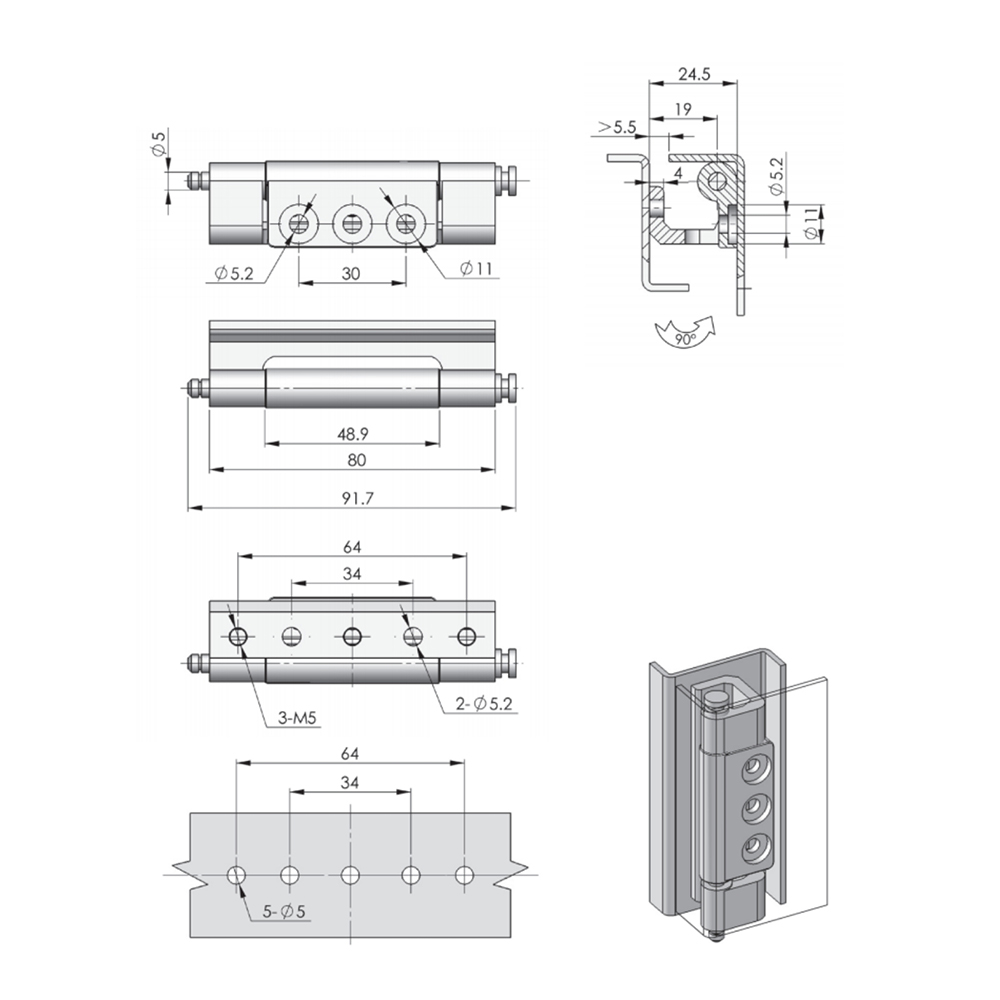

- Dimensions: Refer to the technical drawing for detailed measurements
- Opening Angle: 90 degrees
- Axial Load Capacity: 650N
- Radial Load Capacity: 465N
Applications
- Industrial enclosures
- Control panels
- Access doors requiring limited opening
Keywords
Concealed hinge, CL132-2, CL132, CL132-6-L-F, stainless steel hinge, electrolytic finish hinge, 90-degree hinge, compact enclosure hinge, access control hinge, alternative hinge
