CL130-2 Concealed Hinge, 90° Opening Angle
The CL130-2 Concealed Hinge is designed for applications requiring a hidden hinge mechanism. It enables a 90° opening angle, perfect for secure and precise door alignment. When there is a 2mm gap between the door panel and the frame, the hinge offers smooth 90° rotation, making it suitable for various industrial and commercial applications.
Material
- Hinge Body: Carbon Steel
- Pin: Carbon Steel
Surface Finish
Zinc Plated

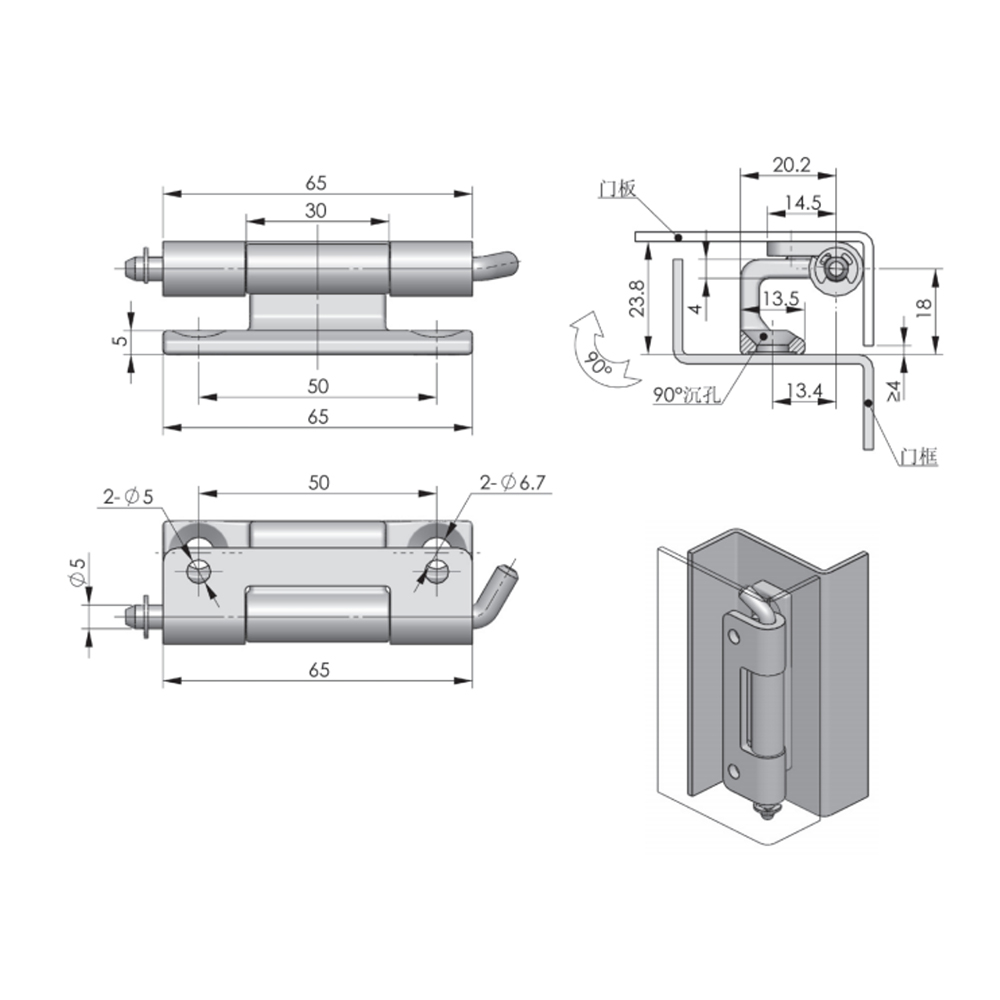

Structure Description
- Opens at a 90° angle when there is a 2mm gap between the door and frame.
- Designed to keep the hinge concealed when the door is closed.
Products Categories
Get A Free Quote
Key Features
- High static load capacity
- Durable zinc plating for corrosion resistance
- Concealed installation design for a clean and streamlined look
Specifications
- Radial Load: 1125N
- Axial Load: 1320N
Applications
Ideal for use in industrial cabinets, commercial doors, and other applications where concealed hinges are preferred.
Keywords
CL130, Concealed Hinge, 90° Hinge, Carbon Steel Hinge, Zinc Plated, Industrial Hinge, Cabinet Hinge, Door Hinge
