CL125 Series Aluminum Alloy Concealed Hinge with Stainless Steel Pin for Industrial Enclosures
The CL125 series concealed hinge is crafted from durable aluminum alloy and is designed for industrial enclosures. Featuring a corrosion-resistant stainless steel pin, this hinge ensures long-lasting performance and reliability. Suitable for applications requiring concealed and secure door or panel fittings.
Material
- Main Material: Aluminum Alloy (hinge body)
- Pin Material: Stainless Steel
- Bushing: Plastic Insert
Surface Finish
- Anodized Black or Natural Silver
Color/Appearance
Available in Black and Silver
Products Categories
Get A Free Quote
Key Features
- Concealed design, providing a sleek and professional appearance
- High load capacity for robust support
- Suitable for 180° door opening
- Available in multiple sizes to fit various applications

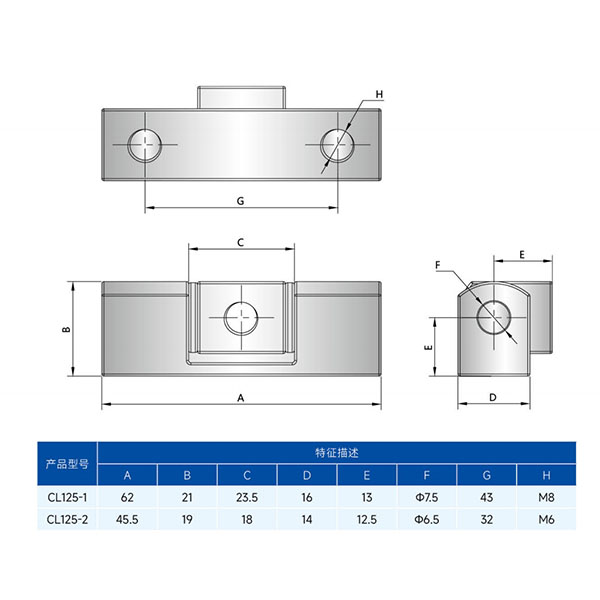

Specifications
| Product Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
| CL125-1 | 62 | 21 | 23.5 | 16 | 13 | Ø7.5 | 43 | M8 |
| CL125-2 | 45.5 | 19 | 18 | 14 | 12.5 | Ø6.5 | 32 | M6 |
Applications
Ideal for use in industrial enclosures, electrical cabinets, and other secure panels requiring concealed installation and high durability.
