CL119 Concealed Hinge, Door-Stay Style, Zinc Plated, 90° Rotation
The CL119 concealed hinge offers a sleek and secure solution for doors that need a hold-open mechanism. With a robust design and zinc-plated finish, this hinge is ideal for applications requiring a 90° rotation. It remains hidden when closed, maintaining the aesthetic of the door.
Material: Zinc alloy hinge with stainless steel pin and locking screws.
Surface Finish and Color/Appearance: Zinc plating, polished finish.
Products Categories
Get A Free Quote
Key Features
- Concealed when door is closed.
- Door-stay feature holds the door open at a 90° angle.
- Durable zinc alloy construction with stainless steel components for added strength.
Specifications
- Radial Load (Static): 625 N
- Axial Load (Static): 205 N
- Maximum holding torque: 18.2 N·m
- Operating Temperature Range: -40°C to 85°C

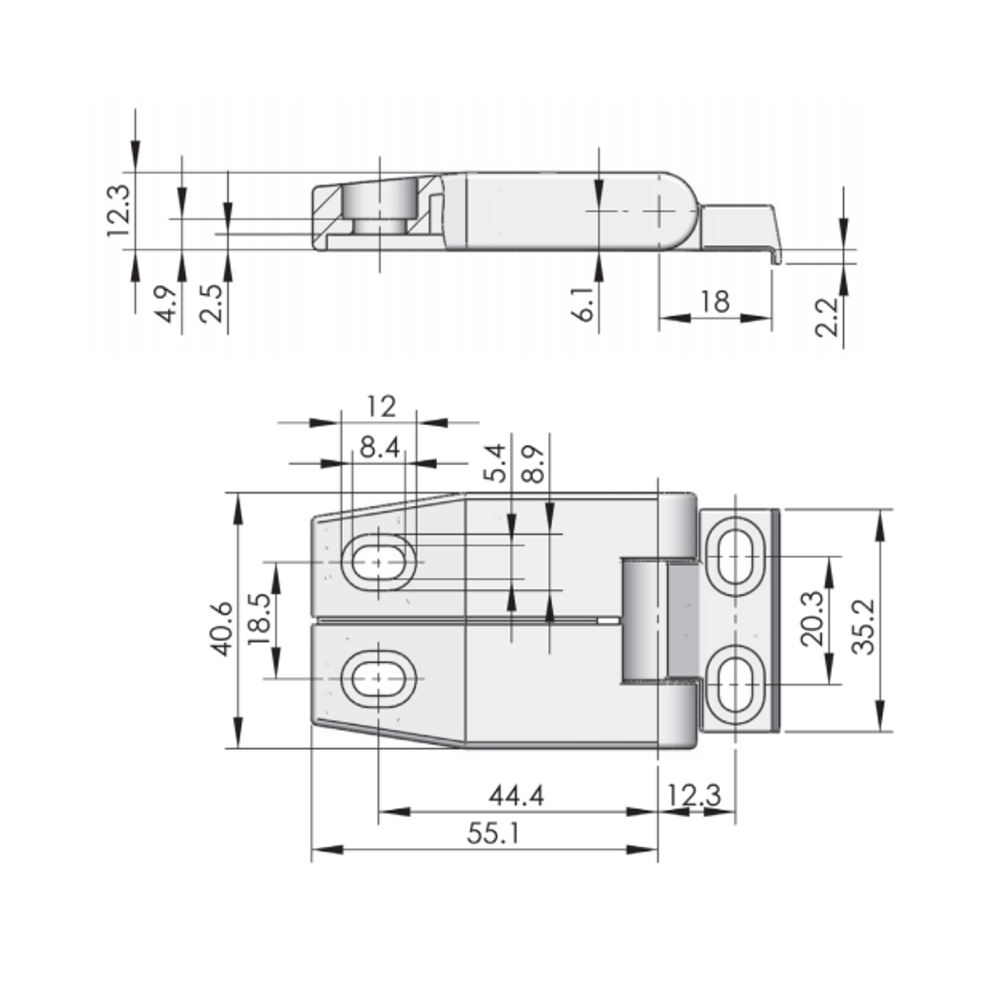

- Dimensions: Refer to technical drawing for detailed measurements.
Applications
Ideal for industrial enclosures, access panels, and doors requiring a hold-open function and concealed appearance.
