CL117 Carbon Steel Hinge with 3000N Load Capacity, Zinc-Plated Finish
The CL117 hinge is engineered for demanding applications requiring superior strength and durability. Constructed from high-grade carbon steel with a zinc-plated finish, it offers excellent corrosion resistance and a professional metallic appearance. Designed to handle static loads of up to 3000N in both radial and axial directions, this hinge is ideal for industrial equipment, heavy-duty enclosures, and large access panels. Its robust structure ensures reliable performance even in challenging environments.
Material
- Body: Carbon steel
Surface Finish and Appearance
- Zinc-plated finish for enhanced corrosion resistance and a polished metallic look
Products Categories
Get A Free Quote
Key Features
- Heavy-duty construction with a maximum load capacity of 3000N in both radial and axial directions.
- High-strength carbon steel body ensures reliable performance.
- Corrosion-resistant zinc-plated finish for durability in harsh environments.
- Compact yet robust design suitable for large doors and panels.
- Easy installation with pre-drilled mounting holes.

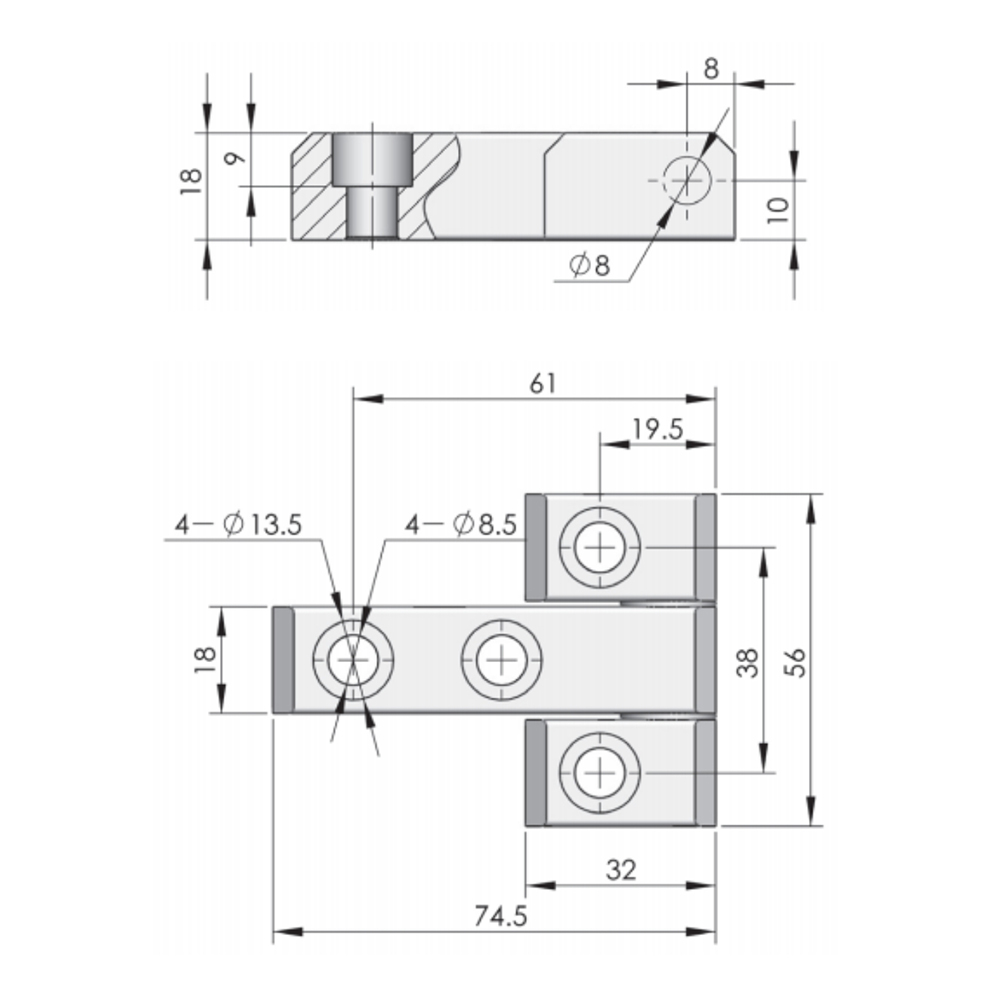

Specifications
- Dimensions: 74.5mm length, 56mm height, 18mm thickness.
- Mounting hole diameter: 4 × Ø8.5mm and Ø13.5mm.
- Pin diameter: Ø8mm.
- Maximum radial load: 3000N.
- Maximum axial load: 3000N.
Applications
- Industrial machinery and equipment
- Heavy-duty access panels and enclosures
- Transportation and logistics systems
- Large doors in industrial and commercial settings
Keywords
CL117 hinge, carbon steel hinge, heavy-duty hinge, 3000N load capacity hinge, zinc-plated hinge, industrial door hinge, robust hinge, CL117F3D001.
