CL114 Carbon Steel Hinge with 90° Opening, Zinc-Plated, 110N Radial Load Capacity
The CL114 hinge offers a compact and functional solution for lightweight doors and panels. Made from carbon steel with a durable zinc-plated finish, it ensures strength and corrosion resistance for long-term use. Its 90° opening angle is ideal for applications requiring restricted access. With a static radial load capacity of 110N and axial load capacity of 105N, this hinge is suited for low to medium-duty enclosures and equipment.
Material
- Body: Carbon steel
Surface Finish and Appearance
- Zinc-plated finish for corrosion resistance and a sleek metallic appearance
Products Categories
Get A Free Quote
Key Features
- Compact design suitable for lightweight doors and panels.
- 90° opening angle for restricted access.
- High strength carbon steel construction with protective zinc plating.
- Supports up to 110N radial and 105N axial static loads.
- Easy clip-on installation with pre-threaded mounting configuration.
Specifications

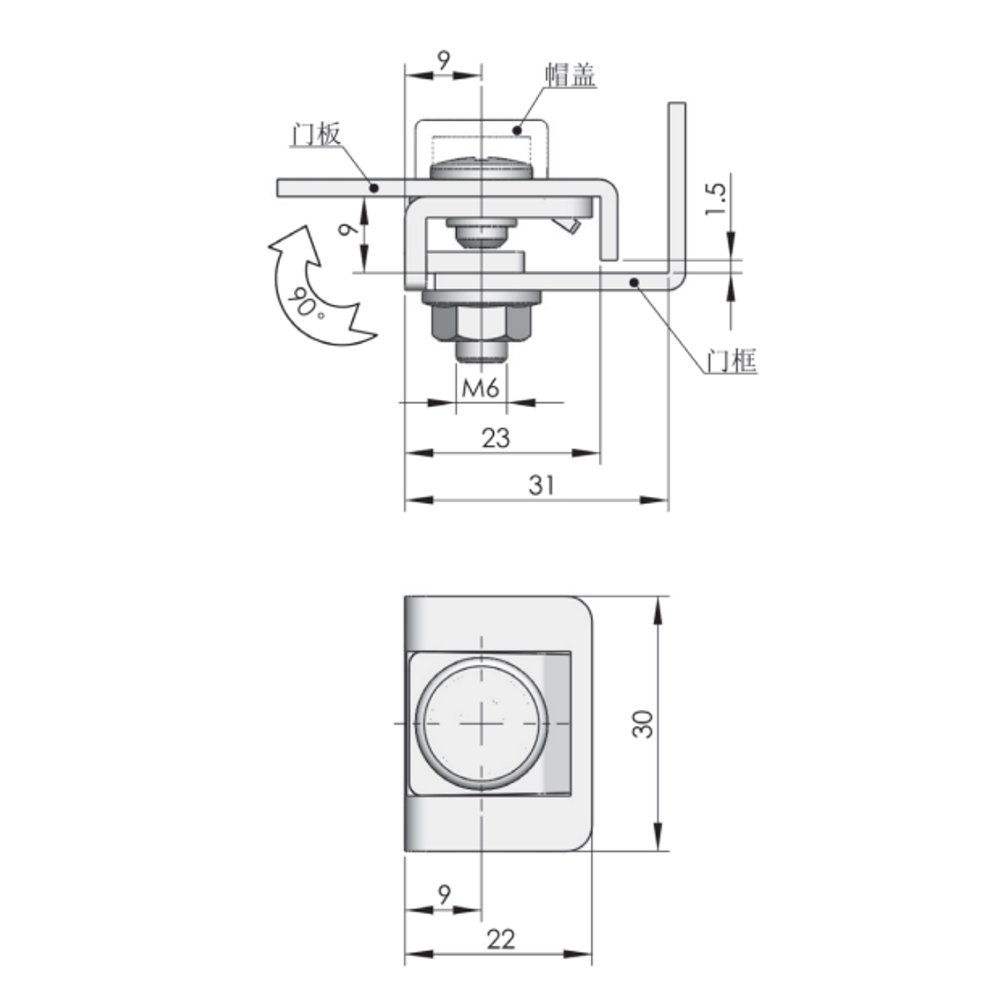

- Dimensions: 31mm width, 30mm height, 9mm panel spacing.
- Mounting thread: M6.
- Radial load capacity: 110N.
- Axial load capacity: 105N.
- Opening angle: 90°.
Applications
- Lightweight enclosures
- Electrical panels
- Cabinet doors with restricted access
- Equipment requiring simple and secure hinges
Keywords
CL114 hinge, carbon steel hinge, 90° opening hinge, clip-on hinge, zinc-plated hinge, lightweight door hinge, industrial hinge, CL114F3D001.
