CL058 Concealed Hinge, 180° Rotation, High-Strength Zinc Alloy, Matt Chrome Plating, Multiple Size Options
The CL058 concealed hinge is engineered for applications demanding hidden, secure, and smooth pivoting. This high-quality hinge offers a full 180° opening capability, making it ideal for access panels, industrial enclosures, and concealed cabinet doors. Designed for robustness, the hinge is crafted from high-strength zinc alloy, ensuring durability in various operational environments. Available in multiple sizes, the hinge features a sleek matt chrome finish for aesthetic appeal and corrosion resistance.
Material:
- Zinc alloy static hinge
- Stainless steel rotating shaft
- Steel pins, stainless steel cover plate, and brass washers
Surface Finish: Matt chrome plating
Color/Appearance: Silver with a matt finish
Products Categories
Get A Free Quote
Key Features
- Full 180° opening for wide access
- Concealed installation design for a streamlined look
- Available in multiple sizes to fit various panel requirements
- Durable zinc alloy with corrosion-resistant coating

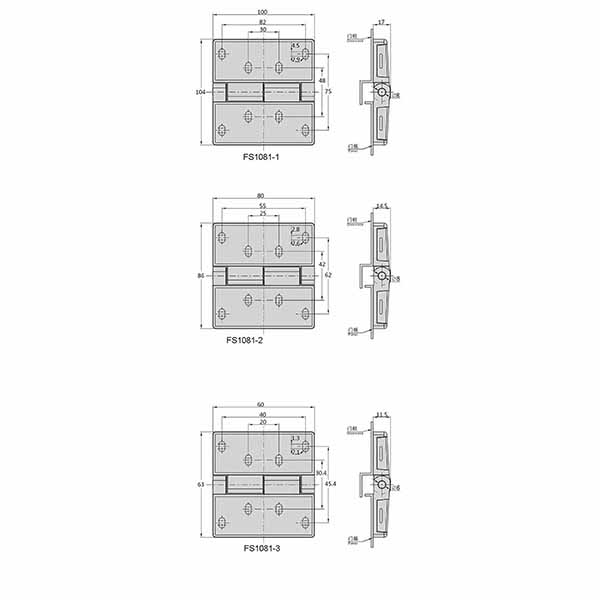

Specifications
- Dimensions for CL058-1:
- L1: 104mm, L2: 75mm, L3: 48mm, B1: 100mm, B2: 82mm, B3: 30mm, H1: 17mm, H2: 4.5mm, R: 2.9mm, ØD: 8mm
- Dimensions for CL058-2:
- L1: 86mm, L2: 62mm, L3: 42mm, B1: 80mm, B2: 55mm, B3: 25mm, H1: 14.5mm, H2: 2.8mm, R: 2.6mm, ØD: 8mm
- Dimensions for CL058-3:
- L1: 63mm, L2: 45.4mm, L3: 30.4mm, B1: 60mm, B2: 40mm, B3: 20mm, H1: 11.5mm, H2: 1.3mm, R: 2.1mm, ØD: 6mm
Applications
- Industrial access panels
- Concealed doors and cabinets
- Equipment enclosures needing aesthetic finishing
