CL050-1T Polyamide and Carbon Steel Hinge, 180° Opening Angle
The CL050-1T hinge is designed for versatile industrial applications that require a durable hinge with a full 180° opening angle. Constructed from carbon steel and enhanced with a polyamide black matte coating, this hinge combines strength with a sleek appearance, ideal for enclosures, panels, and other industrial settings.
Material:
- Hinge Body: Carbon Steel
- Pin: Carbon Steel with Black Matte Polyamide Coating
Surface Finish and Color/Appearance: Matte Black Polyamide Coating
Products Categories
Get A Free Quote
Key Features
- Sturdy Construction: Made from carbon steel for enhanced durability and stability.
- Corrosion Resistant: Polyamide coating provides added protection against corrosion.
- 180° Opening Angle: Allows for flexible movement and accessibility in various applications.
- Easy Mounting: Pre-drilled holes for straightforward installation.
Specifications

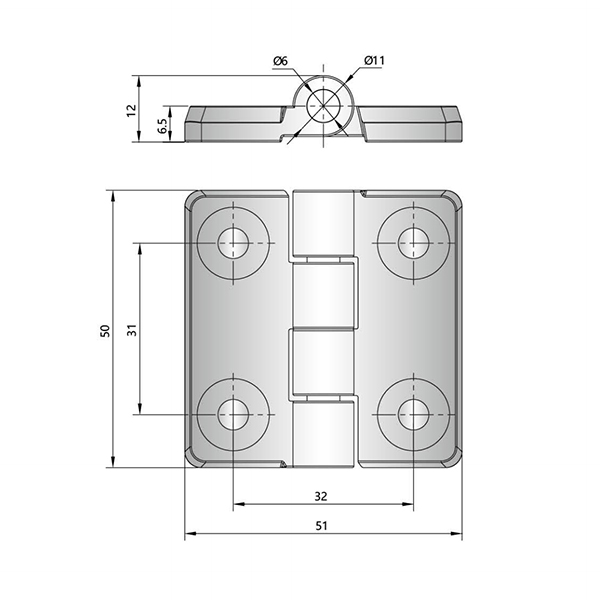

- Dimensions:
- Height: 50mm
- Width: 51mm
- Hole Diameter: 6mm
- Pin Diameter: 11mm
- Opening Angle: 180°
Applications
Suitable for use in machinery enclosures, industrial cabinets, electrical panels, and equipment that requires a durable hinge with a wide range of motion.
Keywords
CL050-1T, industrial hinge, polyamide-coated hinge, carbon steel hinge, 180-degree hinge, black matte hinge
