CL047 Hinge, Concealed Mounting, 180° Opening, Zinc Alloy, Steel Pin
The CL047 concealed hinge offers robust performance and a streamlined design for applications that require a 180° opening angle. Made with a zinc alloy body and reinforced with a steel pin, this hinge is suited for enclosures, cabinets, and panels where durability and aesthetic appeal are paramount. Its concealed mounting structure ensures a clean appearance, making it ideal for various industrial and commercial applications.
Material:
- Zinc Alloy Hinge Body
- Steel Pin
Surface Finish:
- Natural Finish (or specify if additional surface treatment is applied)
Color/Appearance:
- Silver (Natural Zinc Alloy Finish)
Products Categories
Get A Free Quote
Key Features
- Concealed Mounting: Provides a clean and streamlined look with minimal visible hardware.
- Durable Construction: High-quality zinc alloy and steel components ensure longevity and reliability.
- 180° Opening Angle: Allows for full access to enclosed spaces.
- Precision Engineering: Designed with an 11mm countersunk hole to accommodate mounting screws securely.
Specifications
- Opening Angle: 180°

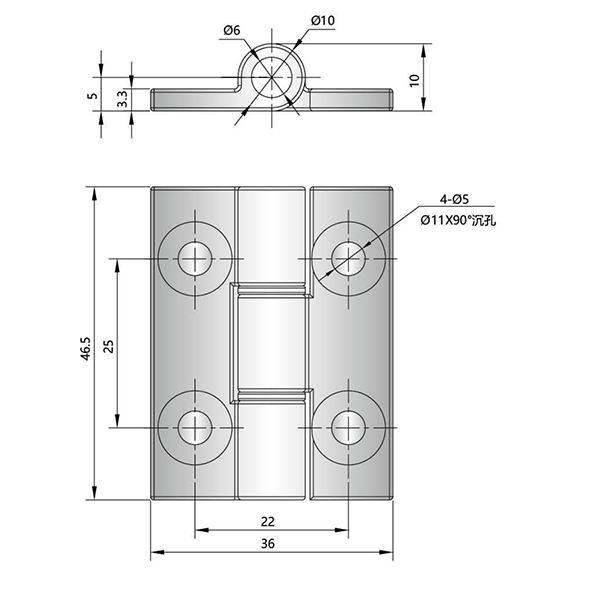

- Dimensions: 46.5mm (height) x 36mm (width), with a hole diameter of Ø6 and Ø10 (as per technical drawing)
- Mounting Hole: 4 holes, Ø5mm countersunk at 90° for flush fitting.
Applications
- Industrial enclosures
- Equipment cabinets
- Control panels
- Concealed doors
Keywords
Concealed hinge, CL047, zinc alloy hinge, 180-degree hinge, silver hinge, industrial hinge, panel hinge, cabinet hinge, concealed mount hinge, Southc alternative
