BT7632 Stainless Steel Pull Handle, Mirror Polished Finish, Multi-Size for Industrial & Hygienic Applications
The BT7632 Pull Handle is a precision-engineered solution designed for industrial cabinets, medical equipment, and high-cleanliness environments requiring durability and corrosion resistance. Constructed from premium stainless steel (AISI 304/316) with a mirror-polished finish, this handle combines hygienic performance with a sleek, professional appearance. Available in multiple lengths, it ensures seamless integration into diverse applications, from sterile labs to heavy-duty machinery.
Material:
- Body: Stainless steel (AISI 304/316)
Surface Finish:
Mirror polishing
Color/Appearance:
Polished silver
Products Categories
Get A Free Quote
Key Features
- Hygienic & Corrosion-Resistant: Ideal for medical, food processing, and laboratory environments.
- Multi-Size Options: Customizable lengths to fit various panel dimensions.
- Durable Construction: Resists chemicals, UV exposure, and mechanical wear.
- Secure Installation: Pre-drilled mounting holes (2-M5 threads) for robust attachment.
- Sleek Aesthetic: Mirror finish enhances visual appeal for high-end equipment.
Specifications

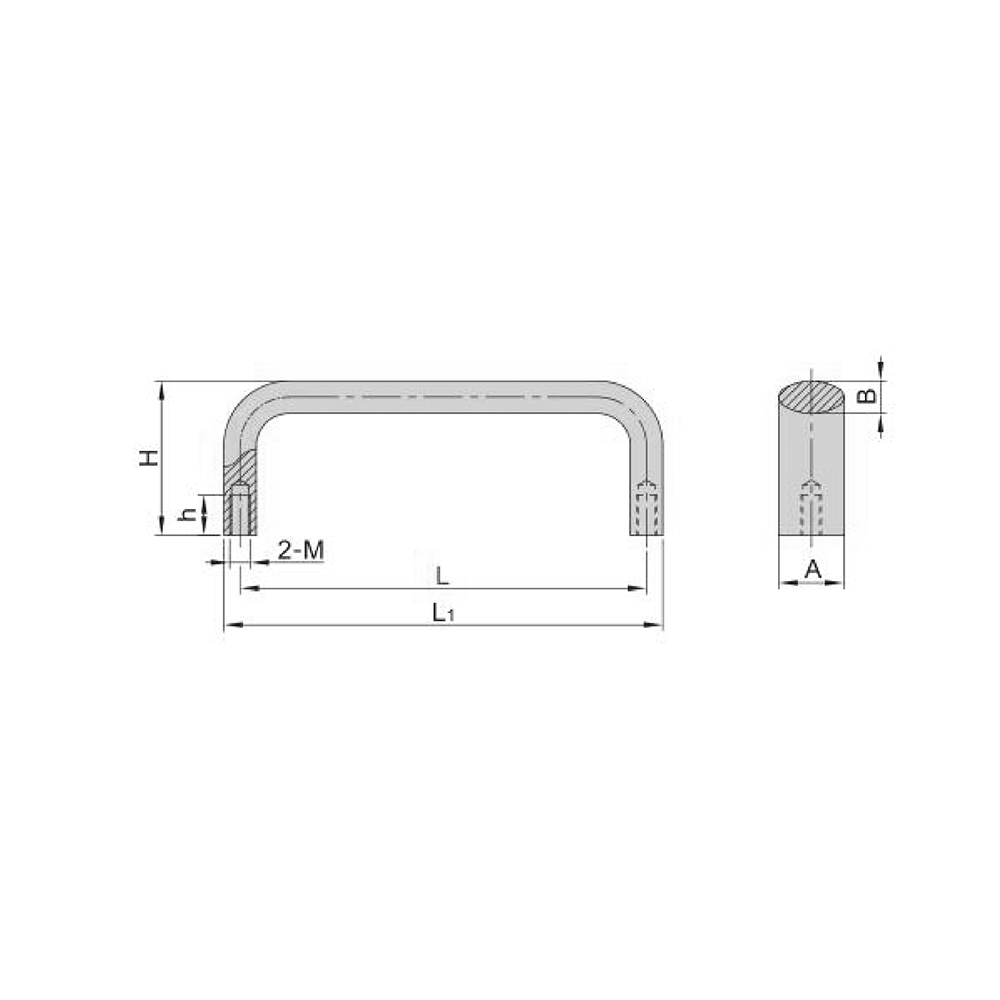

- Dimensions (mm):
| Model | L (Length) | L1 (Overall Length) | A (Width) | B (Height) | H (Handle Height) | h (Cutout Height) | M (Mounting Thread) |
| BT7632-100 | 100 | 110 | 16 | 10 | 35 | 6 | M5 |
| BT7632-120 | 120 | 130 | – | – | 40 | 8 | M5 |
- Mounting Details:
- Pre-drilled holes: 2-M5 threads (standard).
- Thread depth: Adjustable based on application.
Applications
- Medical equipment and sterile environments
- Food processing machinery
- Industrial cabinets and enclosures
- Laboratory instruments
- Architectural panels and high-end furniture
Keywords
Stainless steel pull handle, mirror polished handle, BT7632 series, industrial handle, medical equipment handle, hygienic handle, AISI 304/316 handle
