BT7623 Stainless Steel Pull Handle, Mirror Polished Finish, Multi-Size for Industrial & Hygienic Applications
The BT7623 Pull Handle is a premium-grade solution designed for industrial cabinets, medical equipment, and high-cleanliness environments requiring corrosion resistance and aesthetic appeal. Constructed from high-quality stainless steel with a mirror-polished finish, this handle combines durability with a sleek, easy-to-clean surface. Available in multiple sizes, it offers flexibility for diverse applications while maintaining hygienic and mechanical performance.
Material:
- Body: Stainless steel
Surface Finish:
Mirror polishing
Color/Appearance:
Polished silver
Products Categories
Get A Free Quote
Key Features
- Hygienic & Corrosion-Resistant: Ideal for food processing, medical, and laboratory environments.
- Multi-Size Options: Customizable lengths and mounting configurations to fit various panels.
- Durable Construction: Withstands frequent use in harsh industrial settings.
- Easy Installation: Pre-drilled mounting holes (2-M series threads) for secure attachment.
Sleek Aesthetic: Mirror finish enhances visual appeal for high-end applications.
Specifications

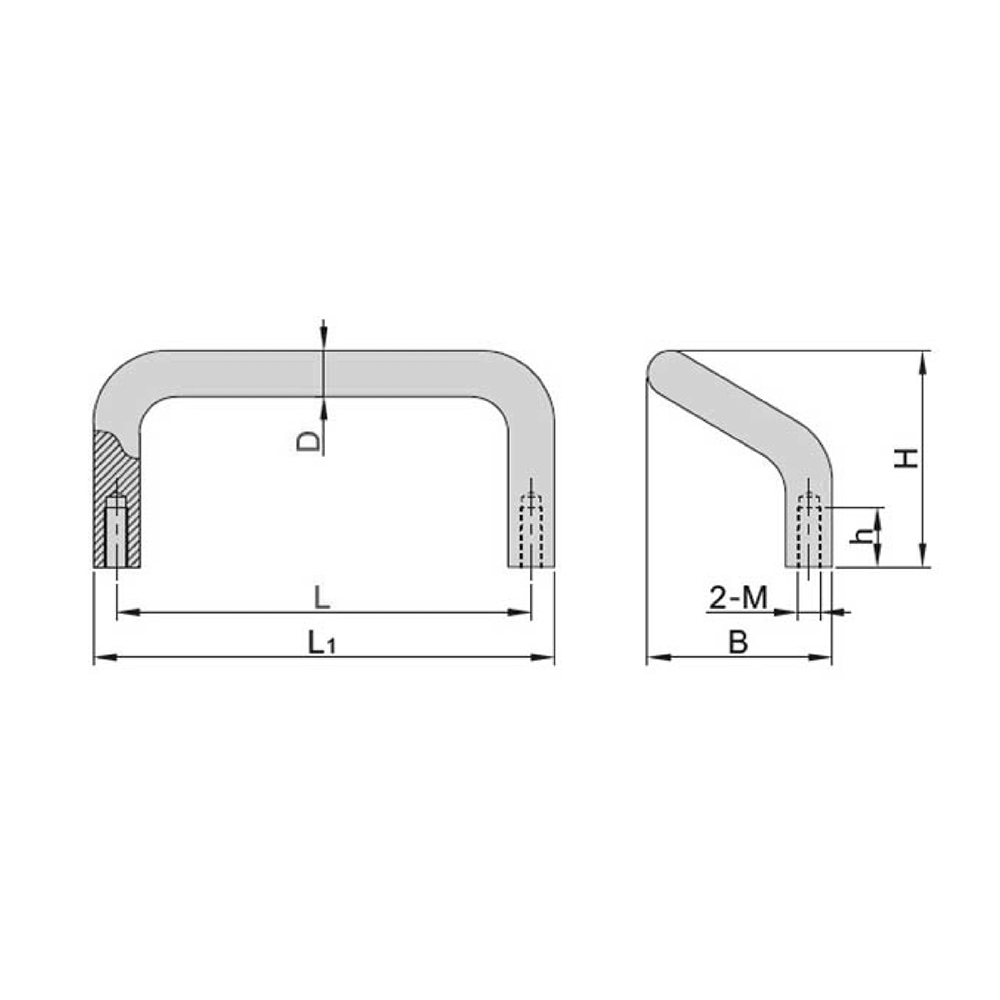

- Dimensions (mm):
| Model | L (Length) | D (Diameter) | L1 (Total Length) | H (Height) | B (Width) | h (Cutout Height) | M (Mounting Thread) |
| BT7623-60 | 60 | 6 | 66 | 30 | 16 | 7 | M4 |
| BT7623-80 | 80 | – | 86 | 31.5 | – | – | – |
| BT7623-100 | 100 | 8 | 108 | 32 | 18 | 10 | M5 |
| BT7623-160 | 160 | – | 170 | – | – | – | – |
- Weight: Lightweight yet robust design (varies by size).
- Performance Parameters:
- Surface Hardness: HRC ≥40 (stainless steel).
- Temperature Resistance: -50°C to 300°C.
Applications
- Food processing machinery
- Medical equipment and sterile environments
- Laboratory instruments
- Industrial cabinets and enclosures
- High-end architectural panels
Keywords
Stainless steel pull handle, mirror polished handle, BT7623 series, industrial handle, medical equipment handle, hygienic handle, multi-size handle
