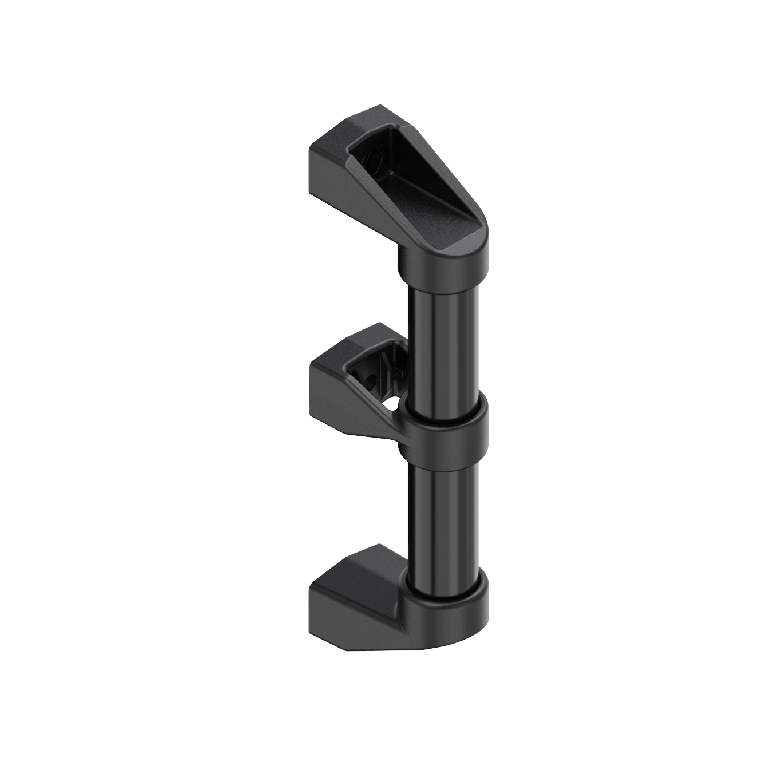

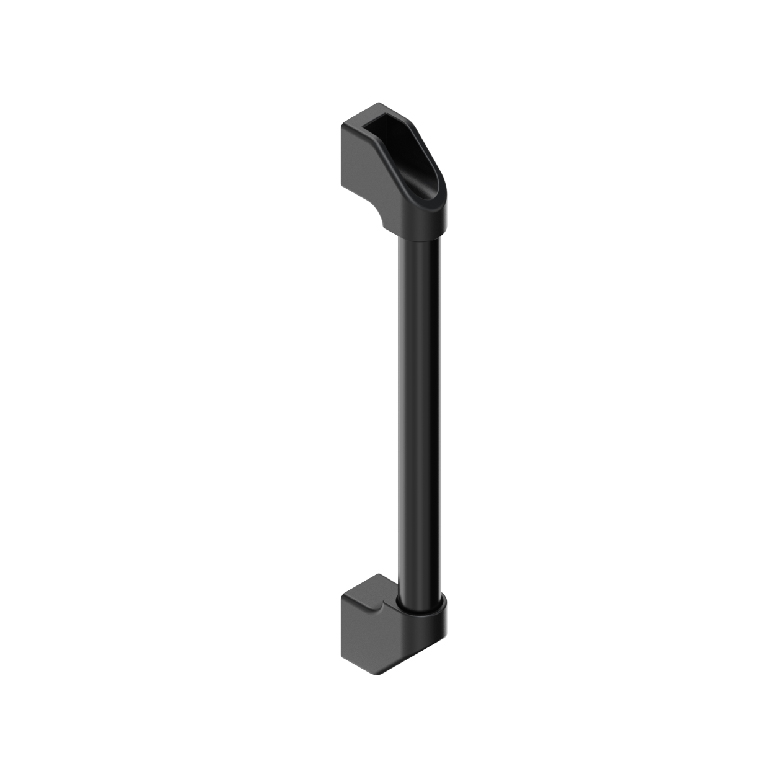

BT7144 PA & Aluminum Pull Handle, Black Spark Texture & Anodized Finish, for 1-5mm Door Panels
The BT7144 Pull Handle is a heavy-duty, multi-material solution designed for industrial cabinets, enclosures, and equipment requiring secure and ergonomic operation. Combining a PA (polyamide) handle base with copper inserts and a 6063 aluminum alloy tube, this handle offers exceptional durability and corrosion resistance. The black spark-textured PA base and anodized matte black aluminum tube provide both aesthetic appeal and functional performance, making it ideal for demanding environments. Suitable for door thicknesses of 1-5mm, it ensures versatile application across industrial and commercial settings.
- Handle Base: PA (Polyamide) with copper inserts
- Tube: 6063 Aluminum Alloy
- Handle Base: Black spark texture (rough finish for enhanced grip)
- Tube: Anodized matte black
- Black spark-textured base with matte black aluminum tube
Key Features
- Dual-Material Construction: PA base with copper inserts for strength + 6063 aluminum tube for lightweight durability.
- Corrosion & Wear Resistance: Anodized aluminum and textured PA ensure longevity in harsh environments.
- Ergonomic Design: Optimized for comfortable pulling and gripping.
- Wide Compatibility: Fits door panels 1-5mm thick.
- Secure Installation: Pre-drilled M8 threaded holes for robust mounting.
Specifications

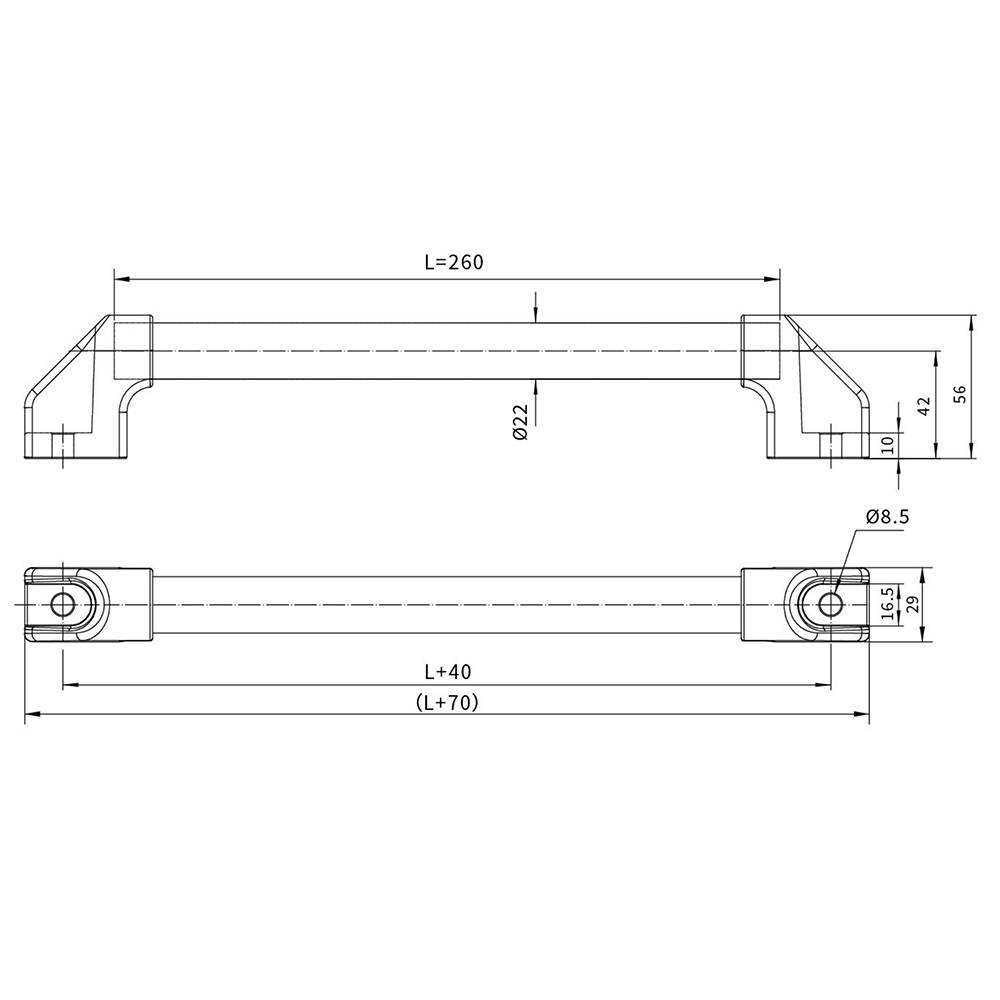

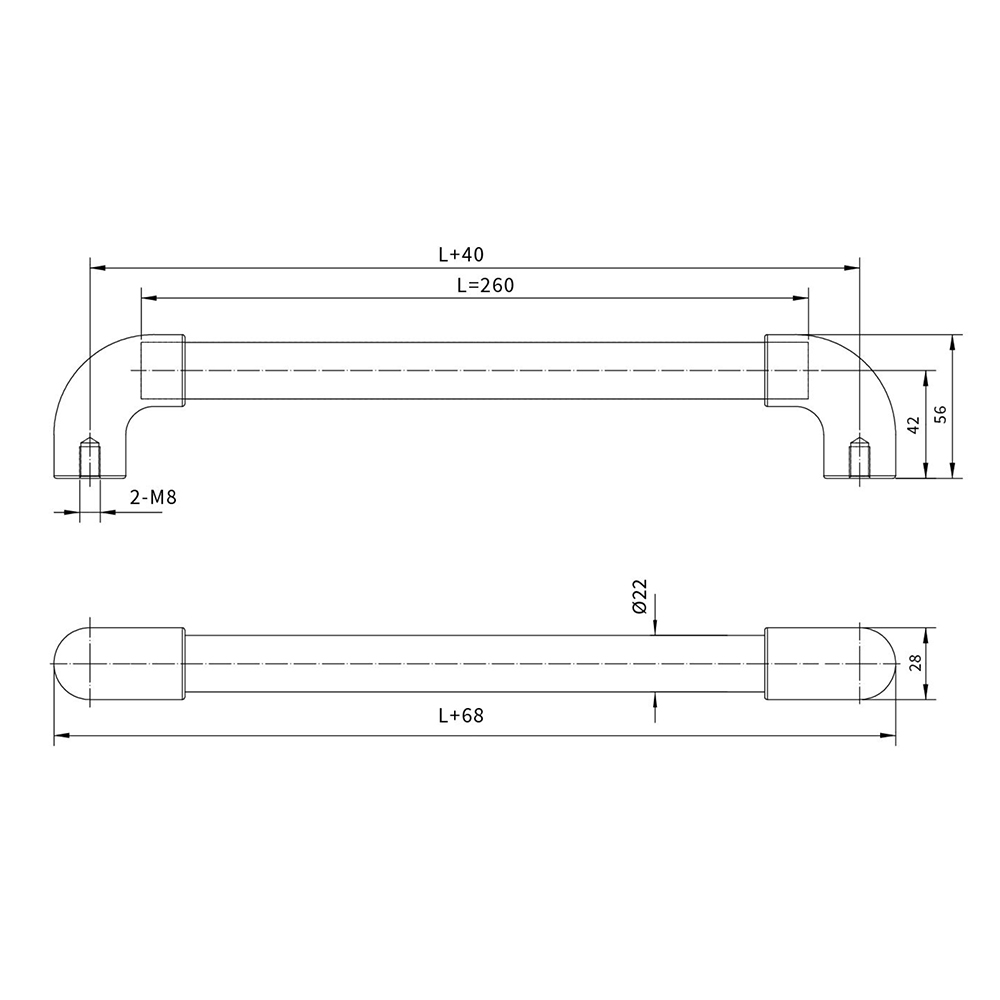

- Dimensions (mm):
- Total Length (L): 260mm
- Tube Diameter: Ø22mm
- Mounting Hole Spacing: 42mm (center-to-center)
- Cutout Dimensions: 56mm x 10mm
- Additional Parameters:
- L+40: 300mm (extended length)
- L+70: 330mm (optional extended configuration)
- Weight: Lightweight yet sturdy design.
- Compatible Door Thickness: 1-5mm.
Applications
- Industrial cabinets and enclosures
- Heavy machinery access panels
- Outdoor equipment and marine applications
- Electrical control panels
- Transportation and logistics containers
