BT6336 Zinc Alloy Latch with Electrophoretic Black Finish – 90° Rotation, for Door Thickness 1~4mm
The BT6336 is a heavy-duty zinc alloy latch designed for industrial and commercial applications requiring durability and precise operation. Featuring an electrophoretic black finish, this latch offers superior corrosion resistance and a sleek aesthetic. The 90° rotation mechanism allows for easy opening and closing, while the adjustable positioning components enable left or right-handed operation. Suitable for door thicknesses of 1mm to 4mm, it is ideal for enclosures, cabinets, and access panels in demanding environments.
- Material: Zinc alloy body and back.
- Finish: Electrophoretic black for enhanced durability and visual appeal.
Products Categories
Get A Free Quote
Key Features
- 90° Rotation Mechanism: Smooth operation for secure locking/unlocking.
- Adjustable Positioning: Supports left or right-handed operation.
- Corrosion Resistance: Electrophoretic black finish ensures longevity.
- Wide Compatibility: Fits door panels from 1mm to 4mm thickness.
- Secure Design: Includes a built-in padlock feature for added security.
Specifications
- Model Number: BT6336
- Surface Finish: Electrophoretic black
- Door Thickness Compatibility: 1~4mm
- Rotation Angle: 90°

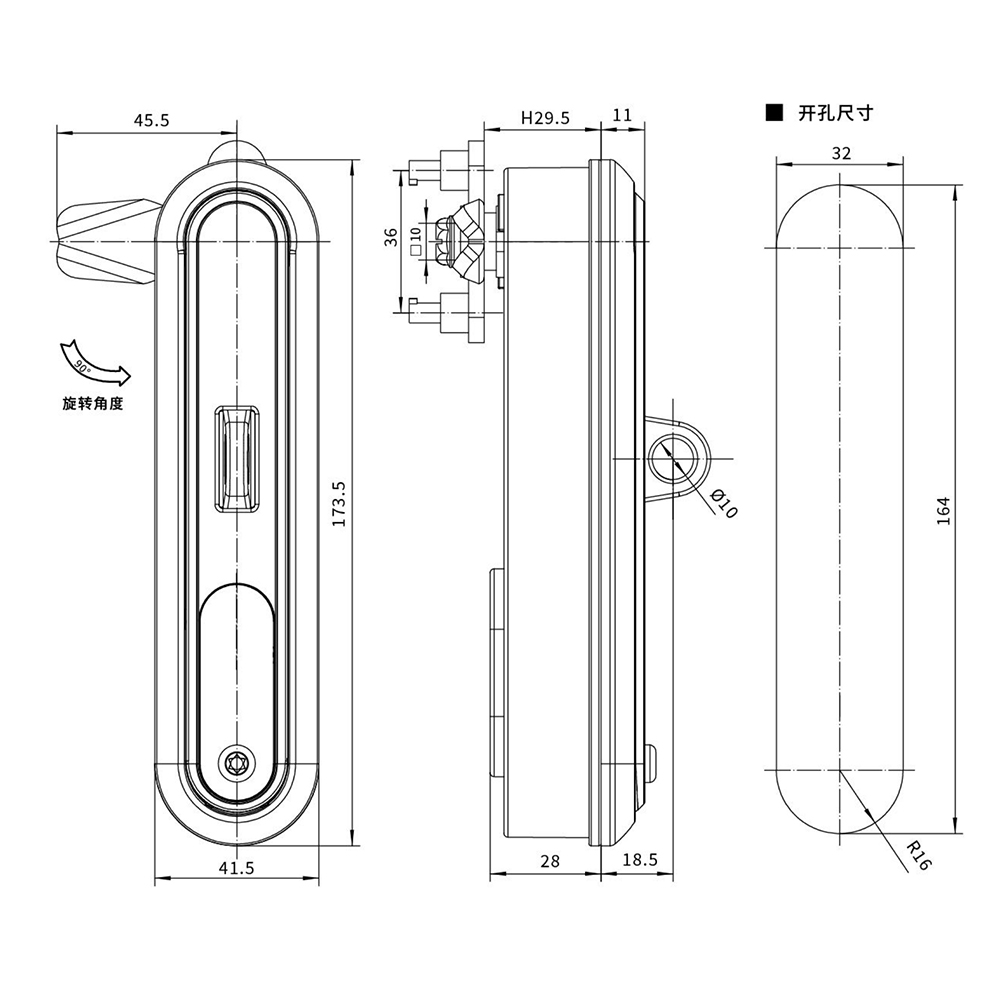

- Dimensions:
- Length: 173.5mm
- Width: 45.5mm
- Height: 29.5mm
- Mounting Holes:
- Hole Diameter: Ø6mm
- Hole Spacing: 32mm
Applications
- Industrial machinery enclosures.
- Telecommunication cabinets.
- Medical equipment access panels.
- Automotive control units.
