BT6083 Guide & Catch Components
Precision-engineered components designed for secure alignment and stability in locking systems. Ideal for industrial and commercial applications requiring robust rod support and catch mechanisms.
Material:
Black PA (Polyamide), ZDC (Zinc Die-Cast), or PC (Polycarbonate) depending on the model.
Surface Finish and Color/Appearance:
Smooth matte black or polished zinc finishes for corrosion resistance and aesthetic appeal.
Key Features
- Enhanced durability with high-grade materials.
- Compatibility with various rod configurations.
- Simplified installation with ergonomic designs.
- Reliable support and catch mechanisms for locking systems.
Specifications
Model-specific dimensions and configurations (see table below).
Applications
Widely used in enclosures, control panels, and industrial equipment requiring rod and catch support.
Specifications Table
| Model | ERP | Material | Dimensions | Remarks |

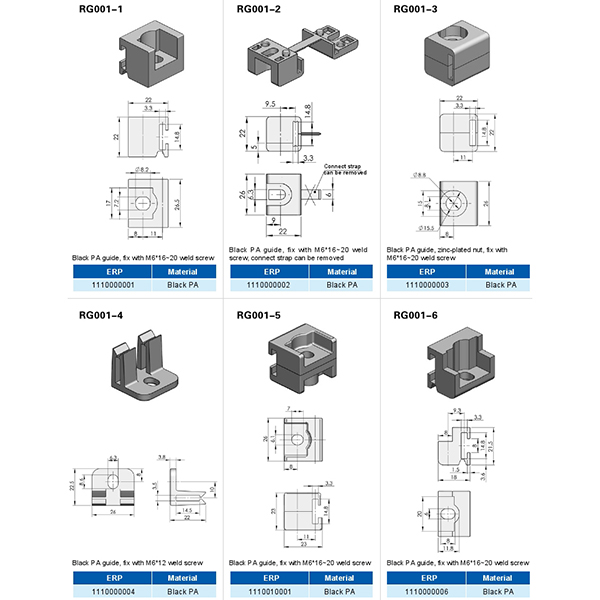

| RG001-1 | 1110000001 | Black PA | 22×33.5×25 | Fixed with M6*16-20 weld screw. |
| RG001-2 | 1110000002 | Black PA | 22×33.5×25 | Connect strap can be removed. |
| RG001-3 | 1110000003 | Black PA | 22×33.5×25 | Zinc-plated nut, fixed with M6 weld screw. |

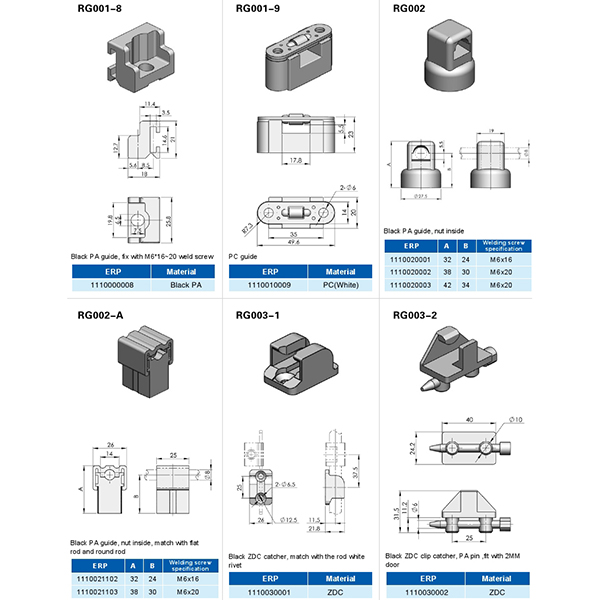

| RG002 | 1110020001 | Black PA | – | Nut inside, match with flat rod. |
| RG002-A | 1110021102 | Black PA | – | Nut inside, suitable for round rods. |
| RG003-1 | 1110030001 | ZDC | – | Catcher with white rivet for rod alignment. |
| RG003-2 | 1110030002 | ZDC | – | Clip catcher, suitable for 2MM doors. |

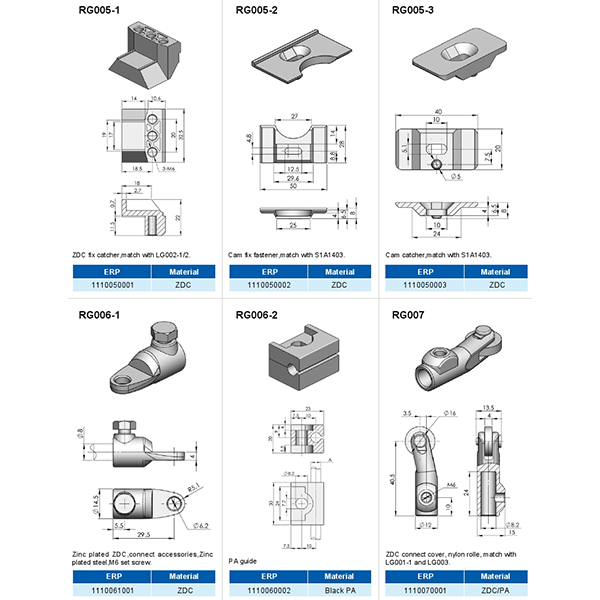

| RG005-1 | 1110050001 | ZDC | – | Fix catcher compatible with LG002. |
| RG006-1 | 1110061001 | ZDC | – | Connect accessory with M6 screw. |
(Continue this table for all models, detailing ERP codes, materials, and dimensions for each.)
Keywords
RG001-1, RG001-2, RG001-3, RG001-4, RG001-5, RG001-6, RG001-8, RG001-9, RG002, RG002-A, RG003-1, RG003-2, RG003-3, RG003-4, RG003-5, RG003-6, RG003-7, RG003-8, RG003-9, RG003-10, RG003-11, RG004-1, RG004-2, RG004-3, RG005-1, RG005-2, RG005-3, RG006-1, RG006-2, RG007, RG008, RG010, RG015.
