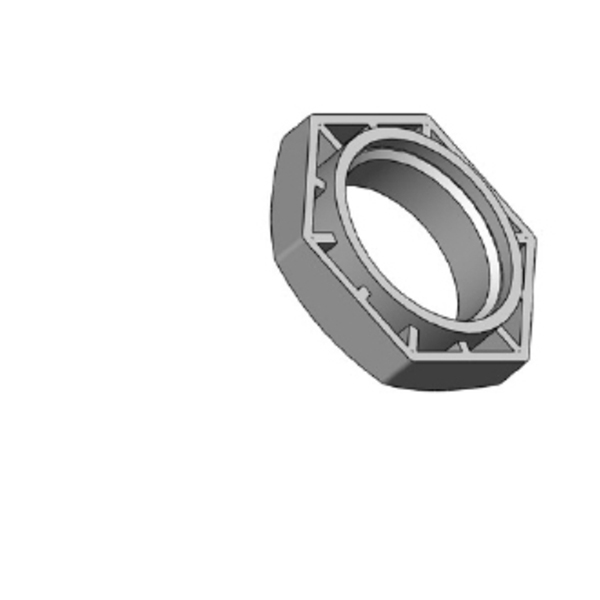

BT6080 Hexagonal Earthed Nut and Non-Standard Plane Nut Collection
A versatile collection of nuts and locking screws, designed for precision and durability. Featuring hexagonal earthed nuts and plane nuts suitable for various applications, these components are ideal for industrial and mechanical assemblies. Available in multiple dimensions and materials, ensuring adaptability and robust performance.
Material:
- Nuts: Zinc Die-Cast (ZDC), SUS304, Carbon Steel
- Screws: Zinc-Plated Carbon Steel
Surface Finish and Color/Appearance:
- Zinc Plating for corrosion resistance
- Metallic finish in silver and gray tones
Products Categories
Get A Free Quote
Key Features
- High torque resistance and secure fittings
- Available in standard and non-standard sizes
- Suitable for grounding and locking applications
- Washer-integrated screws for secure assembly
Specifications

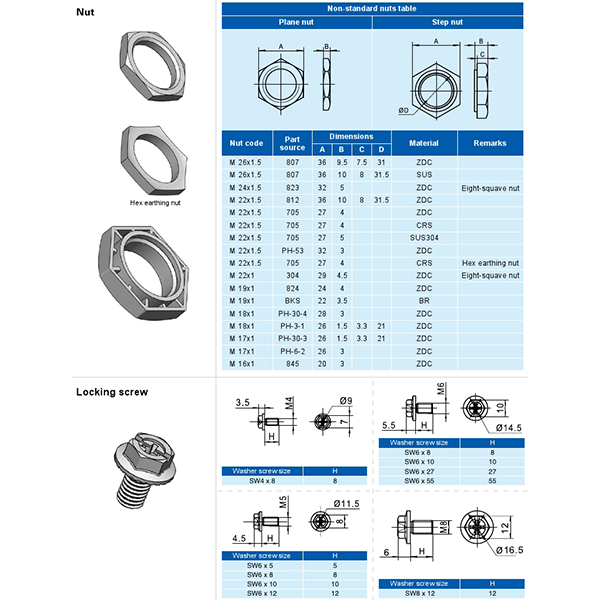

- Nut Dimensions: Refer to the detailed non-standard nuts table.
- Screw Sizes:
- Washer size options: SW6x8, SW6x10, SW6x12, SW8x12
- Shaft dimensions range from 3.5 mm to 6 mm
Applications
- Electrical grounding
- Industrial machinery assembly
- Mechanical fastening systems
Keywords
Hex nut, plane nut, locking screw, M26x1.5 nut, M22x1.5 step nut, SW6x8 screw, industrial fasteners, earthed components, mechanical nuts.
