BT6051 ABS Latch with Gray Paint Finish – Heavy-Duty, for Door Thickness 1~20mm
The BT6051 is a versatile and durable latch designed for industrial and commercial applications requiring lightweight yet robust performance. Featuring an ABS body with a gray paint finish, this latch offers excellent corrosion resistance and a sleek aesthetic. The zinc-plated pressure plate and lock plate ensure reliable performance, while the left/right bent lock plate options provide flexibility for diverse mounting needs. Suitable for door thicknesses of 1mm to 20mm, it is ideal for enclosures, cabinets, and access panels in demanding environments.
- Material: ABS body, zinc-plated pressure plate, lock plate.
- Finish: Gray paint for enhanced durability and visual appeal.
Products Categories
Get A Free Quote
Key Features
- Lightweight & Durable: ABS body ensures strength without added weight.
- Corrosion Resistance: Zinc-plated components protect against rust and wear.
- Left/Right Lock Plate Options: Bent lock plates for flexible installation.
- Wide Compatibility: Fits door panels from 1mm to 20mm thickness.
- Precision Design: Smooth operation for secure locking/unlocking.
Specifications
- Model Number: BT6051
- Surface Finish: Gray paint
- Door Thickness Compatibility: 1~20mm
- Lock Plate Options: Left/right bent lock plates available.

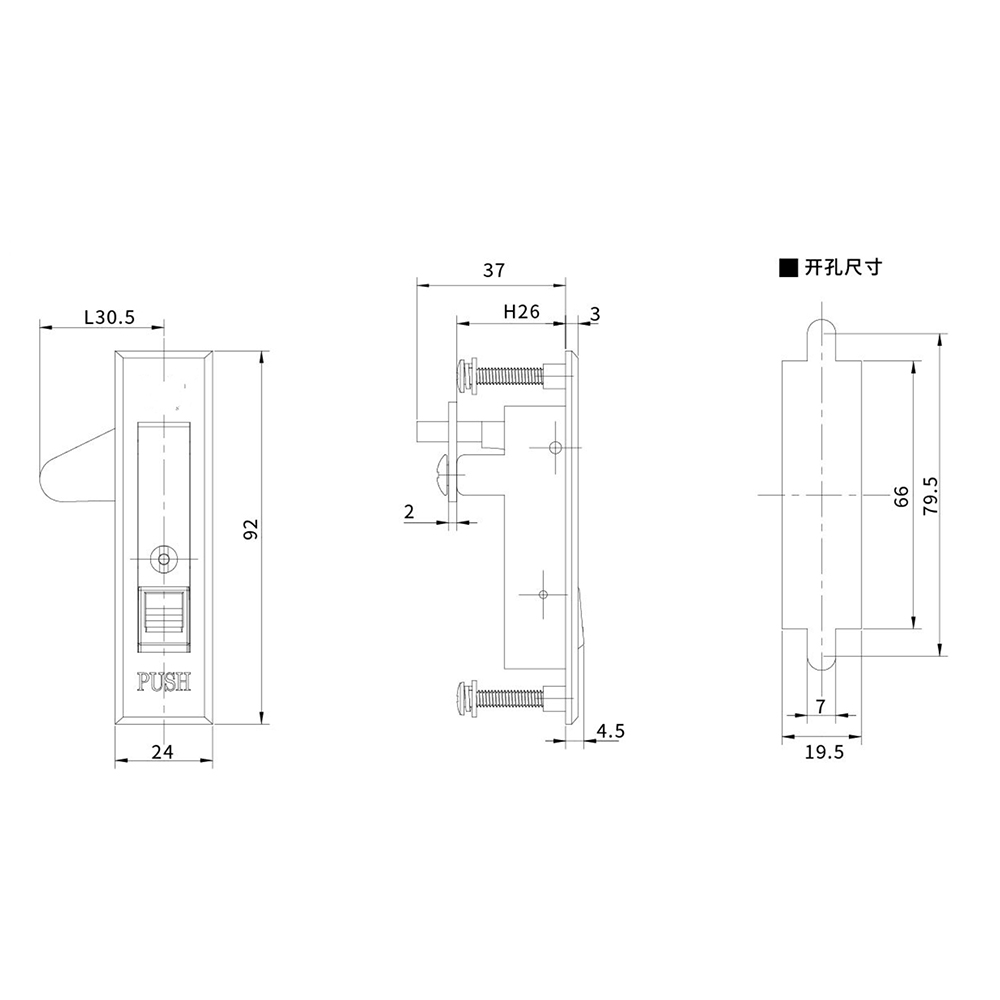

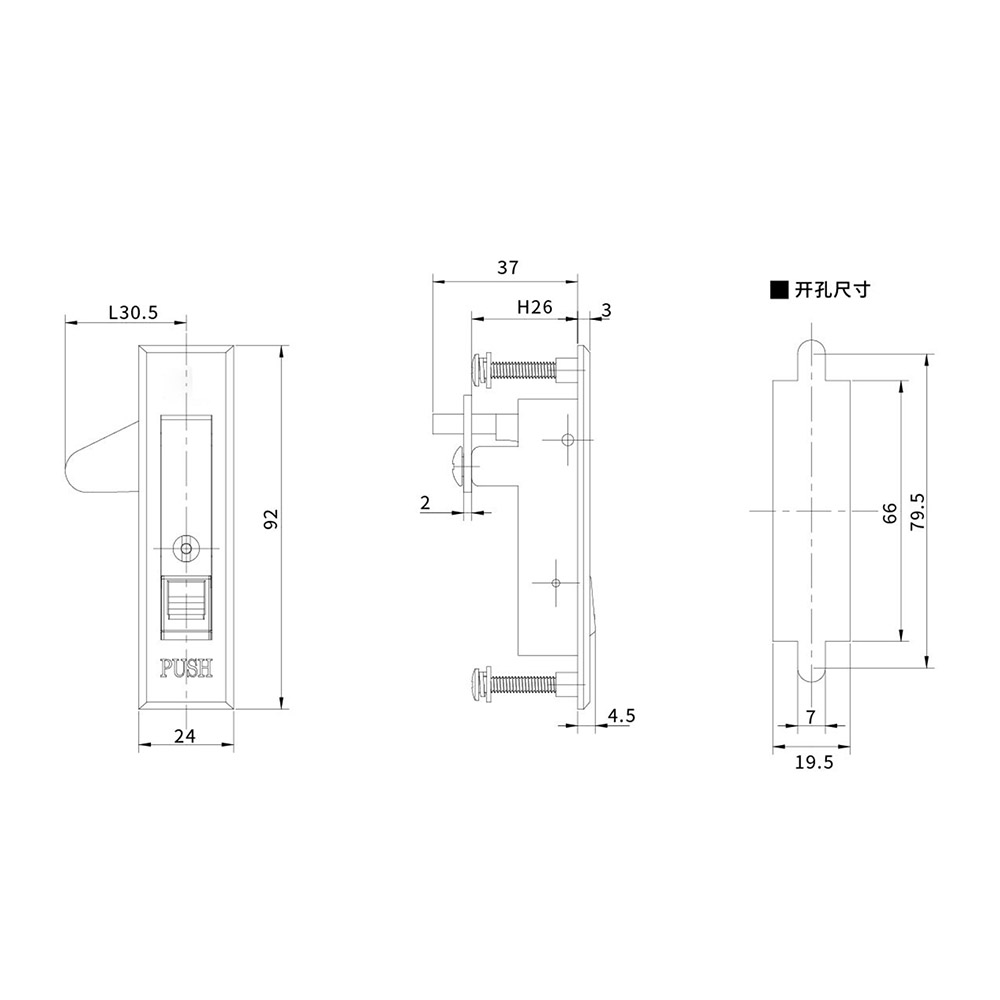

- Dimensions:
- Length: 30.5mm
- Width: 34.5mm
- Height: 26mm
- Mounting Holes:
- Hole Diameter: Ø8.5mm
- Hole Spacing: 25mm
Applications
- Industrial machinery enclosures.
- Telecommunication cabinets.
- Utility boxes and access panels.
- Automotive and marine equipment.
Keywords
- BT6051 latch
- ABS industrial latch
- Gray paint finish latch
- Door latch for 1~20mm thickness
- Left/right bent lock plate latch
- Corrosion-resistant latch
- Lightweight cabinet latch
- Industrial enclosure hardware
- High-strength compression latch
