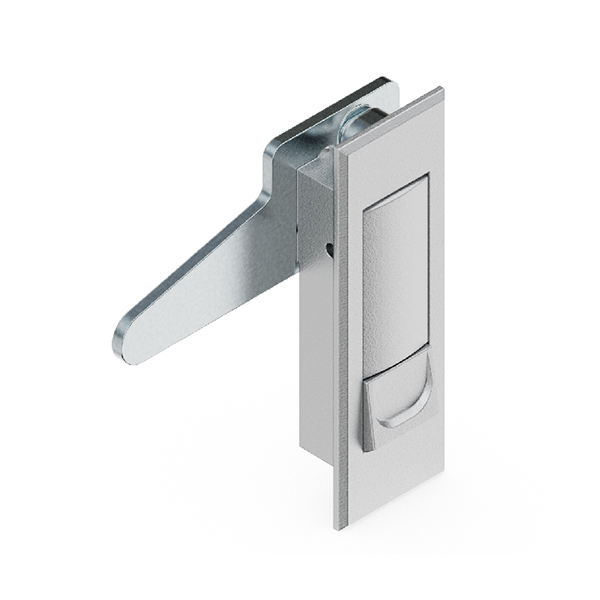

BT3145 Zinc Alloy Latch with Sand Chrome Finish – Heavy-Duty, for Door Thickness 1~3mm
The BT3145 is a robust zinc alloy latch designed for industrial and commercial applications requiring durability and precision. Featuring a sand chrome finish, this latch offers excellent corrosion resistance and a sleek aesthetic. The zinc-plated pressure plate and lock plate ensure reliable performance, while the reinforced construction supports heavy-duty use. Suitable for door thicknesses of 1mm to 3mm, it is ideal for enclosures, cabinets, and access panels in demanding environments.
- Material: Zinc alloy body, zinc-plated pressure plate, lock plate.
- Finish: Sand chrome plating for enhanced durability and visual appeal.
Products Categories
Get A Free Quote
Key Features
- Heavy-Duty Construction: Zinc alloy body ensures high strength and longevity.
- Corrosion Resistance: Sand chrome finish protects against rust and wear.
- Wide Compatibility: Fits door panels from 1mm to 3mm thickness.
- Precision Design: Smooth operation for secure locking/unlocking.
- Easy Installation: Optimized hole spacing and sizing for quick setup.
Specifications
- Model Number: BT3145
- Surface Finish: Sand chrome
- Door Thickness Compatibility: 1~3mm

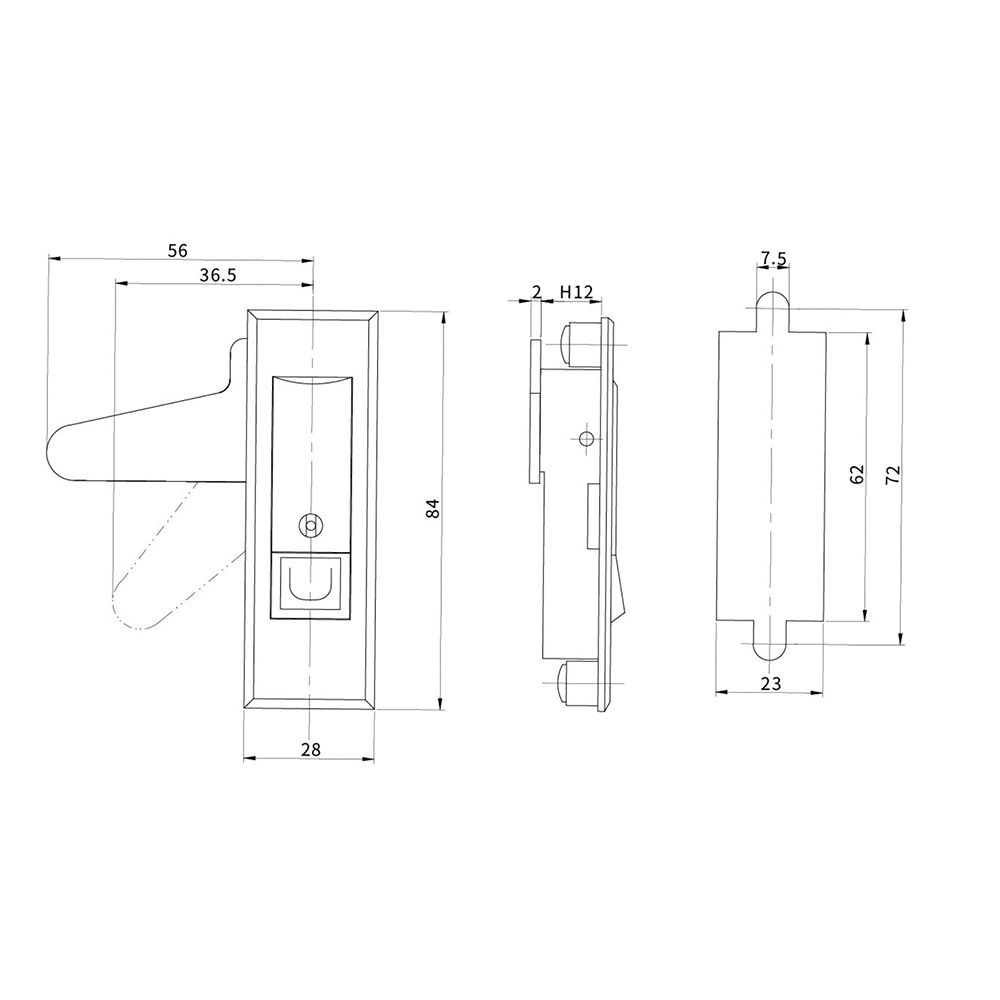

- Dimensions:
- Length: 56mm
- Width: 36.5mm
- Height: 12mm
- Mounting Holes:
- Hole Diameter: Ø7.5mm
- Hole Spacing: 23mm
Applications
- Industrial machinery enclosures.
- Telecommunication cabinets.
- Utility boxes and access panels.
- Automotive and marine equipment.
Keywords
- BT3145 latch
- Zinc alloy industrial latch
- Sand chrome finish latch
- Door latch for 1~3mm thickness
- Heavy-duty cabinet latch
- Corrosion-resistant latch
- Zinc-plated pressure plate
- Industrial enclosure hardware
- High-strength compression latch
