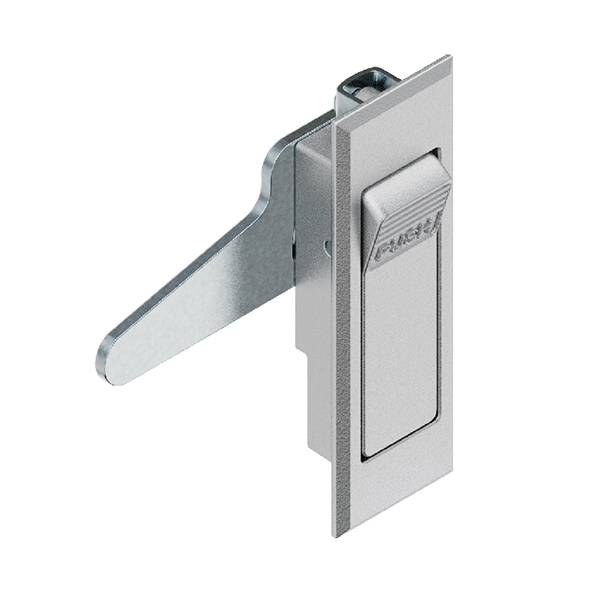

BT3140 Series Push-to-Close Latch, Zinc Alloy Construction, Chrome-Plated Finish, Suitable for Cabinets and Enclosures (1-3mm Door Thickness)
The BT3140 series push-to-close latches are designed for secure and effortless latching in cabinets, enclosures, and industrial applications. Constructed from high-quality zinc alloy with a durable chrome-plated finish, these latches offer excellent corrosion resistance and a sleek appearance. The push-to-close mechanism ensures easy operation, while the robust design provides reliable performance in demanding environments. Suitable for door thicknesses of 1-3mm, the BT3140 series is ideal for a wide range of applications.
Material:
- Body: Zinc alloy
- Lock Plate: Galvanized steel
Surface Finish:
Sandblasted bright chrome plating (standard)
Color/Appearance:
Bright chrome finish (silver)
Key Features
- Push-to-Close Mechanism: Easy and intuitive operation for quick latching.
- Durable Construction: Zinc alloy body with galvanized lock plate for long-lasting performance.
- Corrosion-Resistant Finish: Chrome plating ensures resistance to rust and wear.
- Compact Design: Ideal for space-constrained applications.
- Wide Compatibility: Suitable for door thicknesses of 1-3mm.
Specifications
- IP Rating: Not specified (recommended for indoor use or environments with minimal exposure to dust/water).

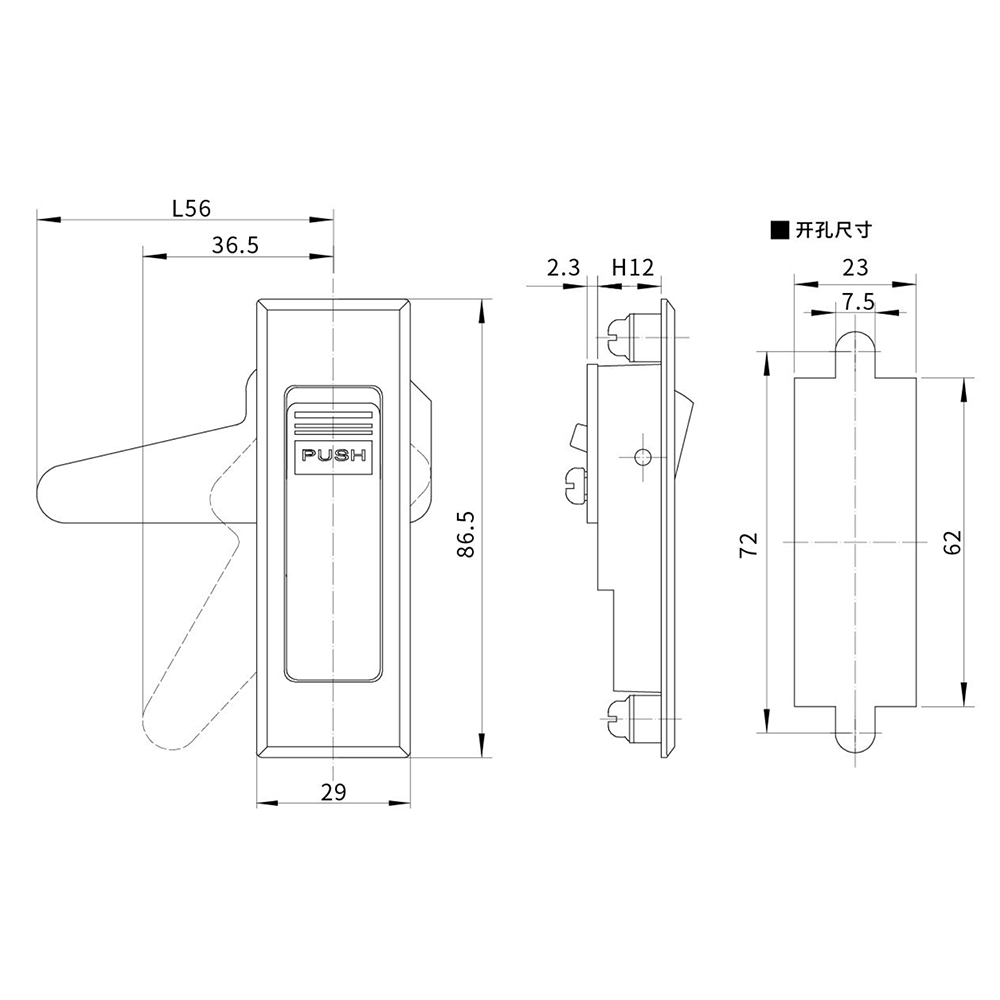

- Dimensions:
- Overall Length: 86.5mm
- Overall Width: 29mm
- Mounting Hole Spacing: 72mm (center-to-center)
- Cutout Dimensions: 23mm x 7.5mm
- Weight: Lightweight design, specific weight not provided.
- Compatible Door Thickness: 1-3mm.
- Performance Parameters:
- Tensile Strength: Not specified (suitable for standard industrial applications).
- Operating Force: Low force required for push-to-close operation.
Applications
- Industrial cabinets
- Electrical enclosures
- Control panels
- Instrument cases
- Access panels
ERP Product Codes
- BT3140-1: Standard variant, ERP Code: [Insert Code]
- BT3140-2: Optional finish (if applicable), ERP Code: [Insert Code]
- BT3140-3: Customizable dimensions (if applicable), ERP Code: [Insert Code]
Keywords
Push-to-close latch, zinc alloy latch, chrome-plated latch, industrial cabinet latch, BT3140 series, compact latch, corrosion-resistant latch, 1-3mm door latch, enclosure latch, electrical panel latch
