BT3136 Zinc Alloy Latch with Sand Chrome Finish – Heavy-Duty, for Door Thickness 1~3mm
The BT3136 is a robust zinc alloy latch designed for industrial and commercial applications requiring durability and precision. Featuring a sand chrome finish, this latch offers excellent corrosion resistance and a sleek aesthetic. The zinc-plated pressure plate and lock plate ensure reliable performance, while the 10×10mm (AB50112-1-1) or 8×8mm (other models) lock plate openings provide secure mounting. Suitable for door thicknesses of 1mm to 3mm, it is ideal for enclosures, cabinets, and access panels in demanding environments.
- Material: Zinc alloy body, pivot, zinc-plated pressure plate, lock plate.
- Finish: Sand chrome plating for enhanced durability and visual appeal.
Products Categories
Get A Free Quote
Key Features
- Heavy-Duty Construction: Zinc alloy body ensures high strength and longevity.
- Corrosion Resistance: Sand chrome finish protects against rust and wear.
- Flexible Lock Plate Options:
- AB50112-1-1 Model: 10×10mm lock plate opening.
- Other Models: 8×8mm lock plate opening.
- Wide Compatibility: Fits door panels from 1mm to 3mm thickness.
- Precision Design: Smooth 15° rotation angle for easy operation.
Specifications
- Model Number: BT3136
- Surface Finish: Sand chrome
- Door Thickness Compatibility: 1~3mm
- Lock Plate Opening:
- AB50112-1-1 Model: 10×10mm
- Other Models: 8×8mm

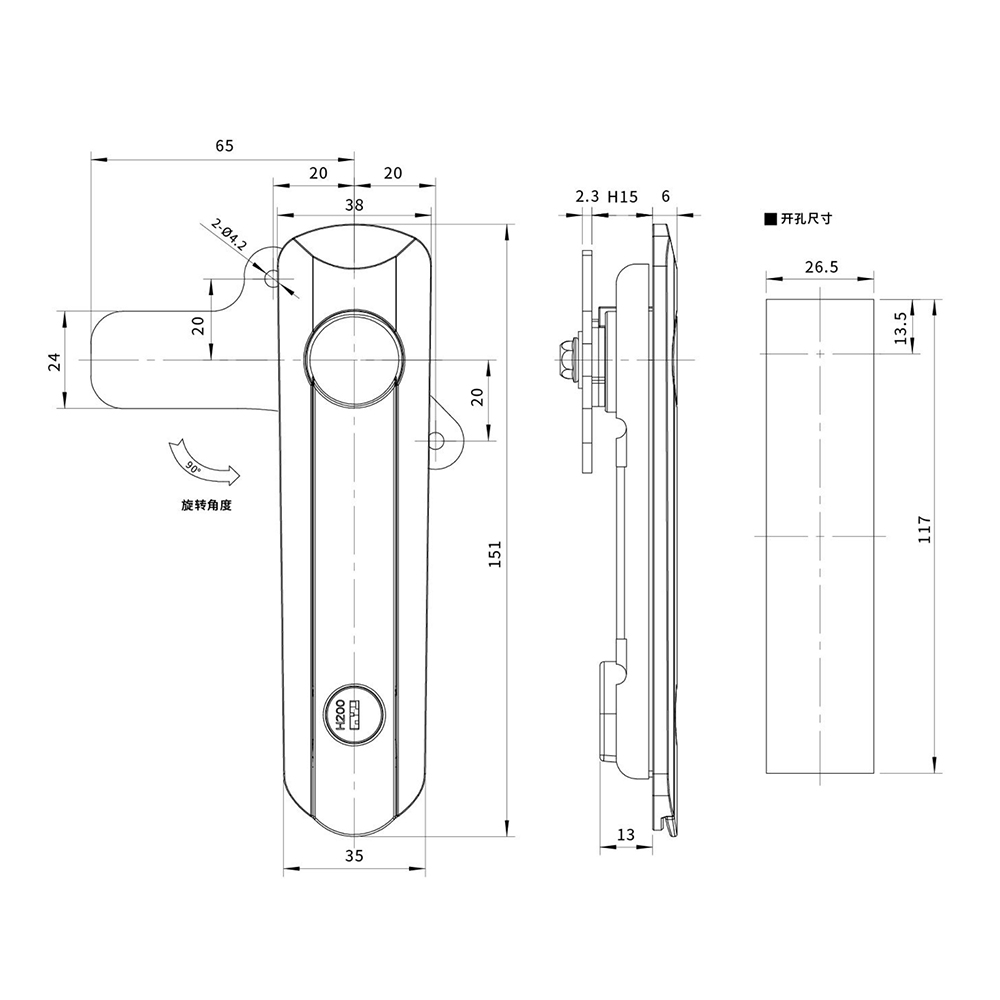

- Dimensions:
- Body:
- Length: 65mm
- Width: 38mm
- Height: 35mm
- Mounting Holes:
- Hole Diameter: 2.3mm
- Hole Spacing: 26.5mm
- Body:
Applications
- Industrial machinery enclosures.
- Telecommunication cabinets.
- Medical equipment access panels.
- Automotive control units.
