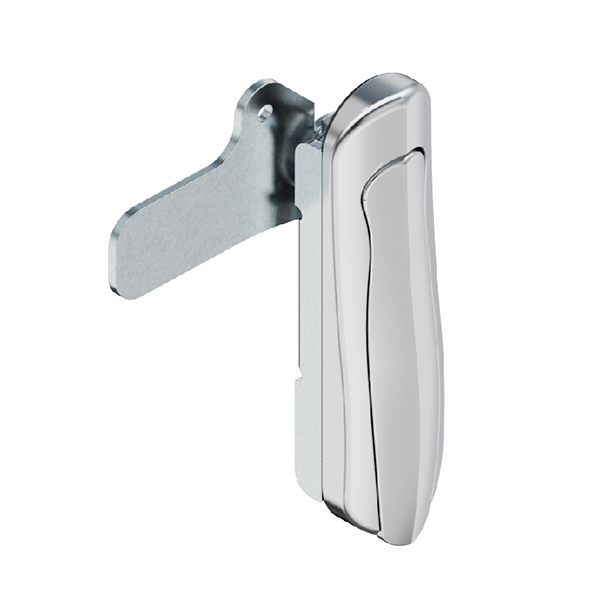

BT2255 Zinc Alloy Latch with 90° Rotation – Heavy-Duty, for Door Thickness 1~3mm
The BT2255 is a robust zinc alloy latch designed for industrial and commercial applications requiring durability and precision. Featuring a 90° rotation mechanism, this latch ensures secure locking and smooth operation. The zinc-plated pressure plate and lock plate provide enhanced corrosion resistance, while the 10×10mm (AB401-1) or 8×8mm (other models) lock plate openings offer flexible installation options. Suitable for door thicknesses of 1mm to 3mm, it is ideal for enclosures, cabinets, and access panels in demanding environments.
- Material: Zinc alloy body, pivot, zinc-plated pressure plate, lock plate.
- Finish: Standard zinc plating for corrosion resistance.
Products Categories
Get A Free Quote
Key Features
- 90° Rotation Mechanism: Smooth operation for secure locking/unlocking.
- Corrosion Resistance: Zinc-plated components ensure long-term durability.
- Flexible Lock Plate Options:
- AB401-1 Model: 10×10mm lock plate opening.
- Other Models: 8×8mm lock plate opening.
- Wide Compatibility: Fits door panels from 1mm to 3mm thickness.
- Precision Engineering: Reinforced structure for reliable performance.
Specifications
- Model Number: BT2255
- Surface Finish: Zinc plating
- Door Thickness Compatibility: 1~3mm
- Lock Plate Opening:
- AB401-1 Model: 10×10mm
- Other Models: 8×8mm

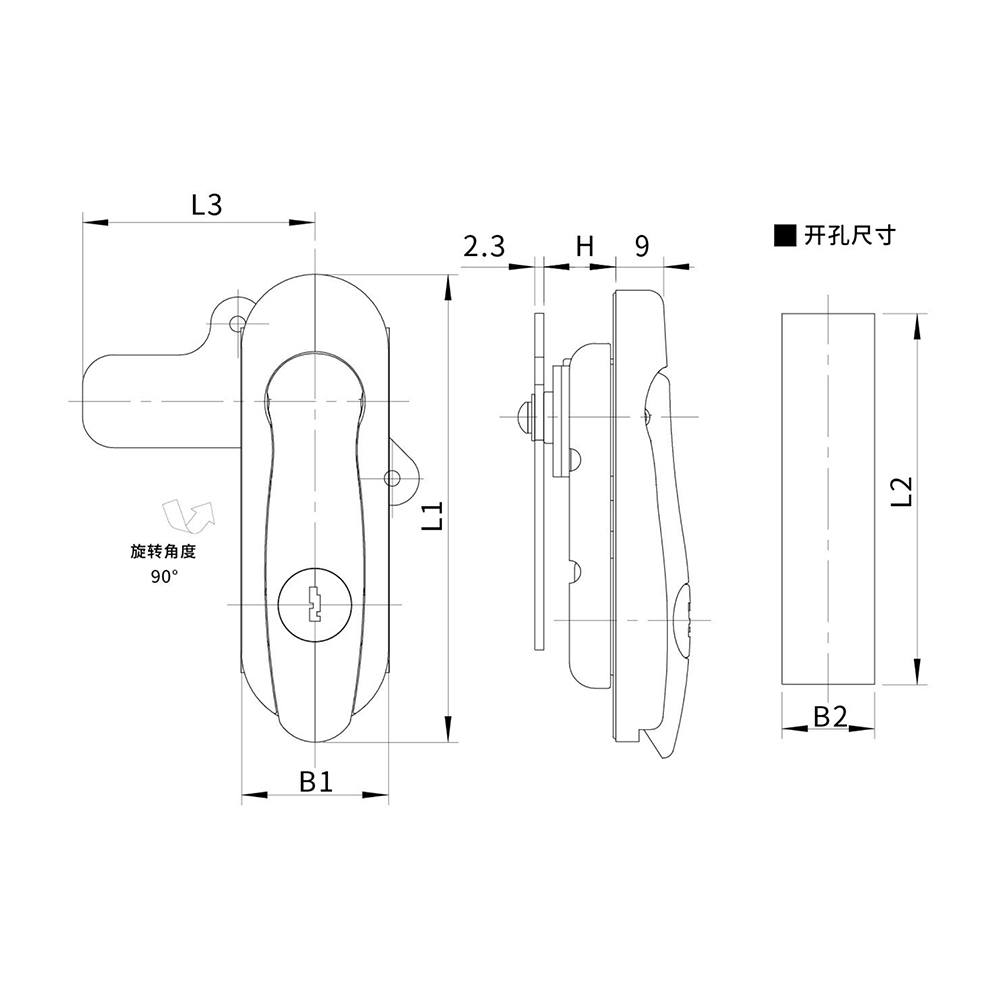

- Dimensions:
- Standard Configuration:
- Length (L1): 147mm
- Width (B1): 33mm
- Height (H): 12mm
- Compact Configuration:
- Length (L1): 123mm
- Width (B1): 30mm
- Height (H): 11mm
- Standard Configuration:
- Mounting Holes:
- Hole Diameter: 2.3mm
- Hole Spacing: 26.5mm
Applications
- Industrial machinery enclosures.
- Telecommunication cabinets.
- Medical equipment access panels.
- Automotive control units.
Keywords
- BT2255 latch
- Zinc alloy industrial latch
- 90° rotation latch
- Heavy-duty cabinet latch
- Door latch for 1~3mm thickness
- AB401-1 lock plate
- Corrosion-resistant latch
